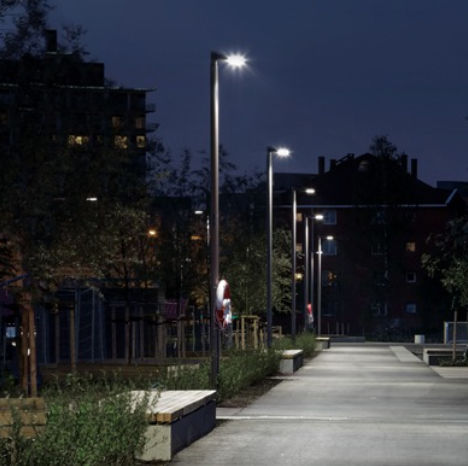

Urban lamp post Q-DROME
contemporarycast aluminumstainless steel

Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 2
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 3
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 4
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 5
Urban lamp post - Q-DROME - AEC Illuminazione - contemporary / cast aluminum / stainless steel - image - 6
Add to favorites
Compare this product

Characteristics

Type
urban
Style
contemporary
Material
cast aluminum, stainless steel, with tempered glass diffuser
Light source
LED
Number of lights
single
Shape
rectangular
Support type
straight
Protection class
IP66
Color
black
Length

365 mm
(14 in)

Width

305 mm
(12 in)

Color temperature

3,000 K, 4,000 K

Color rendering index (CRI)

70 unit

Description

Installations: TP/BR: universal post-top fixing or bracket ø33-ø60mm AM: wall mounting Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives. Weight and dimensions: 422x305x75 5,2kg Powder coating Graphite cod. 01. Corrosion protection: 1500hr saline fog ISO 9227. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 400mA | 500mA. Power factor: > 0.95 (at full load). Mains connection for cables max section 4mm2 Overvoltage protection up to 10kV in common and differential mode. Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection. LED source lifetime ≥100.000hr L90B10 Tq=25°C, 500mA ≥100.000hr L90, TM-21 Tq=25°C, 500mA
