APPLICATION
LED series for urban and street lighting
MECHANICAL CHARACTERISTICS
Die casting aluminium body UNI EN1706 with low copper content for high protection against aggressive marine environment.
Polyurethane seal without junction points. Stainless steel closure springs.
Highly transparent tempered glass.
Installations:

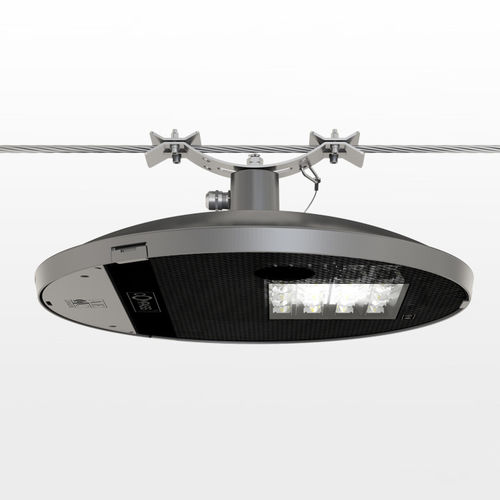

TS suspended installation on cable ø5-ø12mm.
Removable optical and gear tray compartment.
Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives.
Weight and dimensions:
COMPASS 1: 540x87mm - 10.5kg
COMPASS 2: 640x95mm - 13.5kg
Protection degree IP66 | IK08
Powder coating Graphite cod. 01.
Corrosion protection: 1500hr saline fog ISO 9227.
ELECTRICAL CHARACTERISTICS
Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current: 400mA | 500mA.
Power factor: > 0.9 (at full load, F, DA, DAC).
Mains connection for cables max section 4mm2
Overvoltage protection up to 10kV in common and differential mode.
Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection.
LED source lifetime
≥100.000hr L90B10 Tq=25°C, 500mA
≥100.000hr L90, TM-21 Tq=25°C, 500mA
