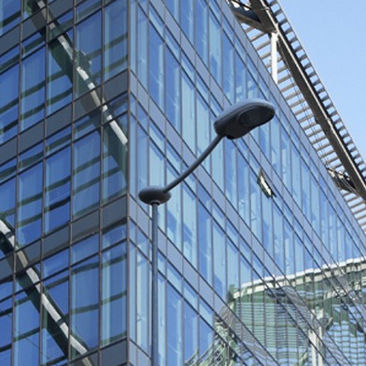

Urban lamp post LUNOIDE

contemporarystainless steelwith tempered glass diffuser

APPLICATIONS HID street lighting luminaire. MECHANICAL CHARACTERISTICS Support frame in die cast aluminium alloy UNI EN 1706, RAL 7038. Top cover in die cast aluminium alloy UNI EN 1706 (VP2 version) or technopolymer FV, RAL 7035. EPDM seal. Closure screen in flat tempered glass (4mm thickness) featured by high transparency and optimum mechanical resistance (IK08). Optical unit in pure anodized and polished aluminum (99.85%). Technopolymer gear plate removable without tools. Membrane grommet. Fixing system in die cast aluminium alloy UNI EN 1706 and steel. Technopolymer lock and stainless steel spring. Optical unit protection degree: IP66. Wiring unit protection degree: IP44. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 230V - 50Hz. Ferromagnetic power supply unit, efficiency EEI = A3. Superimposed pulse ignitor with timer upon request. Power factor: > 0.9 (at full load). Wire connection for cables featured by a maximum cross section of 4mm2. Integrated on-load switch for luminaries in class II. Anti burst capacitor. Ceramic lamp holder. AVAILABLE WATTAGES 50, 70, 100, 150, 250, 400W SHP; 35, 50, 70, 100, 150W MHL; 50, 70, 100, 150W CDO-TT; 45, 60, 90, 140W CPO-TW. AVAILABLE OPTICS ST: asymmetrical Optic for street lighting.
