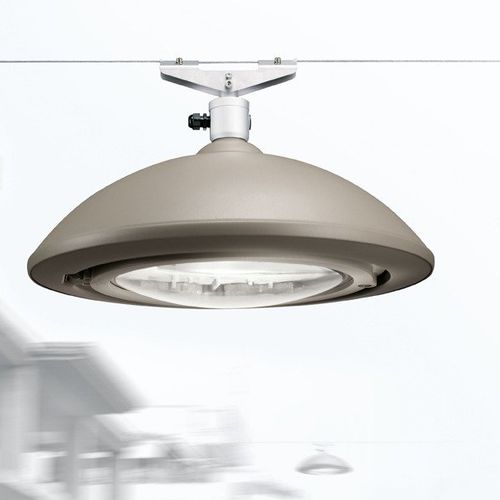

LED cable lighting ARMONIA TS

HIDroundcast aluminum

APPLICATIONS LED street lighting luminaire. MECHANICAL CHARACTERISTICS Support frame in die cast aluminum alloy UNI EN 1706. Hemispherical top cover in turned aluminum UNI EN 485 and steel. Graphite colour (code 01). EPDM seal. Screen in flat tempered glass 4mm thickness high transparency. Optical unit in aluminium finish surface 99.95% with vacuum-sealed deposition. Aluminium Class A+ (DIN EN 16268) Removable metal gear plate. Plastic cable gland M20x1.5mm - IP68. Integrated cable clamp. Suspended fixing system in stainless steel and die-cast aluminum alloy UNI EN 1706 for steel cable Ø 6-12mm. Stainless steel closure screws. IP66 protection degree. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 525/700mA. Power factor: > 0.9 (at full load). Connection: connector for cables featured by a maximum cross section of 2.5mmq. Integrated overvoltage protection: Impulse withstand voltage ≥ 10/10kV common / differential mode for CLASS I and ≥ 7/10kV common / differential mode for CLASS II. Integrated SPD, Type II, In = 5kA, Imax = 10kA, Uoc = 10kV. Optional fuse: 10A 250V gL.
