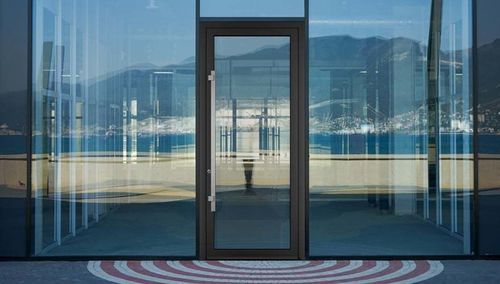

Exterior door SMARTIA MD61

aluminiumcontemporarydouble-glazed

Description
SMARTIA MD61 is a modular insulated entrance door system developed for contemporary architectural applications. It enables glazed entrance door designs with a minimal, flush exterior while preserving thermal performance and secure configurations.

Advantages

• Basic system width: 61 mm
• Flush design for a minimalist appearance and improved perimeter sealing
• Flexible construction supporting multiple entrance door typologies
• Low 10 mm threshold suitable for barrier-free access
• Compatibility with a wide range of security locks and hinges
• Supports heavy-duty sashes with weights up to 180 kg

Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat

Technical Characteristics
FRAME DEPTH: 61 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: 11 mm to 44 mm
SEALING METHOD: Sealing with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 10 mm

Characteristics
SASH WEIGHT: up to 180 Kg
THERMAL TRANSMITTANCE Uf: from 2.4 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 133 mm
SASH DEPTH: 61 mm

Specifications

• Basic system width: 61 mm
• Frame depth: 61 mm
• Sash depth: 61 mm
• Glazing type: Single - Double
• Maximum glazing thickness: 11 mm to 44 mm
• Sealing method: EPDM gaskets
• Minimum threshold height: 10 mm
• Sash weight capacity: up to 180 Kg
• Thermal transmittance (Uf): from 2.4 W/m²K
• Minimum visible aluminium face height: 133 mm
