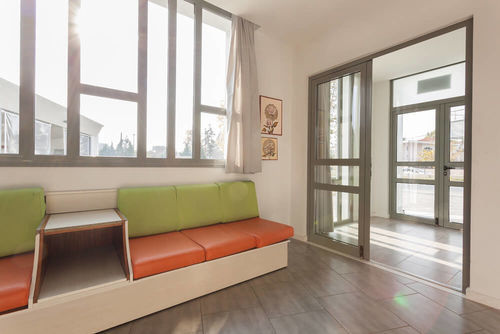

Entry door COMFORT M940

aluminiumswingclassic

Overview
COMFORT M940 is an economical and lightweight non-insulated system for entrance doors that offers reliable performance and multiple configuration options.

Advantages

• Very good value for money
• Economic solutions for small spans
• Wide variety of typologies and finishes

Certificates

• Cradle to Cradle Certified®
• Aluminum TUV Austria OK Recycled (TÜV Austria recycle OK product certificate)

Generic
THERMAL INSULATION: No
EXTERIOR SHAPE: Classic, Flat

Technical Characteristics
FRAME DEPTH: 37 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: From 4 mm up to 24 mm
MECHANISM: Perimetrical locking mechanism
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets

Performance
WATER TIGHTNESS: CLASS 8A
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C3

Characteristics
TYPES OF TYPOLOGY: For all entrance door typologies
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 109.6 mm
SASH WEIGHT: up to 120 Kg

Available typologies (examples)

• Hinged inwards entrance door with kick plate
• Hinged outwards entrance door with kick plate

Characteristics / Technical specifications

• Model: COMFORT M940
• Thermal insulation: non-insulated
• Frame depth: 37 mm
• Glazing: single or double (thickness from 4 mm to 24 mm)
• Locking mechanism: perimetrical
• Sealing system: perimetrical at 3 levels with EPDM gaskets
• Water tightness: Class 8A
• Air permeability: Class 4
• Wind load resistance: C3
• Minimum visible aluminium face height: 109.6 mm
• Maximum sash weight: up to 120 Kg
