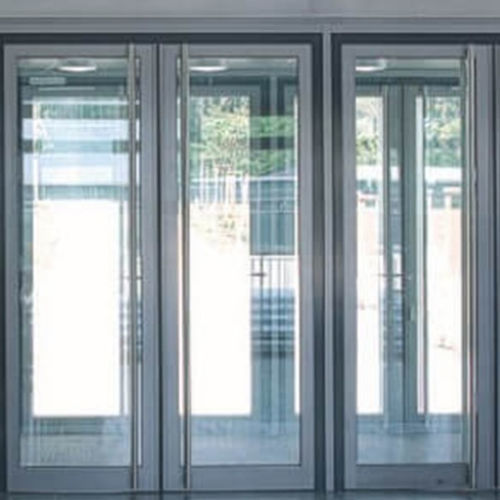

Entry door SMARTIA M15000 RSaluminiumswingtwo-way
Add to favorites
Compare this product
Characteristics
- Type
- entry
- Material
- aluminium
- Opening system
- swing, two-way
- Style
- contemporary
- Glazing
- glazed, double-glazed
- Glass finishes
- clear glass
- Configuration
- double leaf
- Technical characteristics
- security, burglar-proof, smoke-proof
- Other characteristics
- custom, with fixed leaf, double-leaf, on hinge
- Ecological characteristics
- made from recycled materials
- Resistance class EN 1627
- resistance class RC2
Description
Product description
SMARTIA M15000 RS is a hinged system designed for entrance doors. It incorporates a smoke‑proof solution to limit the passage of smoke and odors into protected areas of buildings.
Advantages
Certificates
Generic
THERMAL INSULATION: No
Technical Characteristics
FRAME DEPTH: 50 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 39 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE): 219.8 mm
GLAZING TYPE: Single or Double
MAXIMUM GLAZING THICKNESS: 5 up to 40 mm
MECHANISM: Door locking mechanism
SEALING METHOD: Two levels of watertightness with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 18.5 mm
Performance
BURGLAR RESISTANCE: RC2
Characteristics
SASH DEPTH: 50 mm
SASH WEIGHT CAPACITY: up to 180 Kg
APPLICABLE TYPOLOGIES: All entrance door typologies with glass or aluminium panels
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 121.4 mm
Typologies
Technical specifications
SMARTIA M15000 RS is a hinged system designed for entrance doors. It incorporates a smoke‑proof solution to limit the passage of smoke and odors into protected areas of buildings.
Advantages
- Competitive cost
- Enhanced security level (RC2 option)
- Contemporary architectural appearance
- User-friendly operation and high functionality
- Certified framing performance
Certificates
- Aluminum TUV Austria OK Recycled (certificate image present)
Generic
THERMAL INSULATION: No
Technical Characteristics
FRAME DEPTH: 50 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 39 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE): 219.8 mm
GLAZING TYPE: Single or Double
MAXIMUM GLAZING THICKNESS: 5 up to 40 mm
MECHANISM: Door locking mechanism
SEALING METHOD: Two levels of watertightness with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 18.5 mm
Performance
BURGLAR RESISTANCE: RC2
Characteristics
SASH DEPTH: 50 mm
SASH WEIGHT CAPACITY: up to 180 Kg
APPLICABLE TYPOLOGIES: All entrance door typologies with glass or aluminium panels
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 121.4 mm
Typologies
- Hinged door inward/outward
- Double-leaf door inward/outward opening
- Hinged door inward/outward with insulation panel & fixed pane
- Hinged door inward/outward with insulation panel, fixed pane & fanlight
Technical specifications
- Brand: Alumil
- Commercial name: SMARTIA M15000 RS
- Thermal insulation: non-insulated system
- Frame depth: 50 mm
- Sash depth: 50 mm
- Sash weight capacity: up to 180 Kg
- Glazing type: single or double
- Glazing thickness: 5 to 40 mm
- Sealing system: two levels with EPDM gaskets
- Minimum threshold height: 18.5 mm
- Burglar resistance rating: RC2
- Minimum visible aluminium face height: 121.4 mm
- Minimum visible aluminium face width (central vertical adjoining profile): 39 mm
- Minimum visible aluminium face width (central vertical interlocking profile): 219.8 mm
