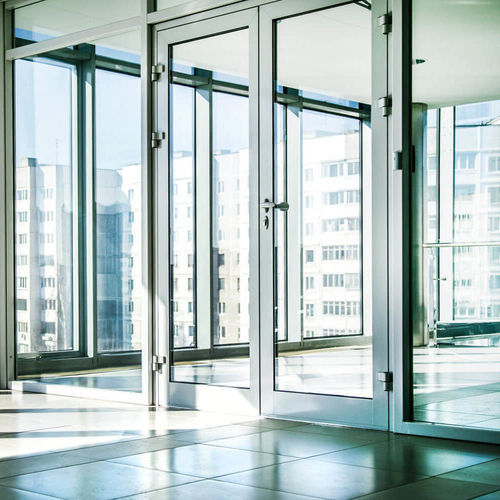

Entry door COMFORT M9400

aluminiumswingcontemporary

Overview
COMFORT M9400 is one of the most complete non-insulated aluminium entrance door systems, offering a wide range of configurations and reliable performance.

Advantages

• Very good value for money
• Good security level
• Good sound insulation
• Variety of profile designs
• Multiple solution options for different installations
• High functionality and compatibility with accessories

Certificates

• Cradle to Cradle Certified®
• Aluminum TUV Austria OK Recycled

Generic
THERMAL INSULATION: No
EXTERIOR SHAPE: Curved, Flat

Technical Characteristics
FRAME DEPTH: 45 mm
GLAZING TYPE: Single - Double - Triple
MAXIMUM GLAZING THICKNESS: From 4 mm up to 39 mm
MECHANISM: Perimetrical locking mechanism
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 10 mm

Characteristics
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 103 mm
SASH WEIGHT: up to 180 kg
TYPES OF TYPOLOGY: For all entrance door typologies

Typologies (examples)

• Single sash tilt-and-turn
• Tilt-and-turn with fixed top light
• Tilt-and-turn with fanlight
• Double tilt-and-turn window
• Double tilt-and-turn with light
• Double tilt-and-turn with fixed light
• Single sash tilt-and-turn with shutter
• Double tilt-and-turn with shutter
• Hinged inward entrance door with kick plate
• Hinged outward entrance door with kick plate
• Double leaf action door

Sections / Media (illustrative)
Product imagery and section views available illustrating typical assemblies and profiles.

Specifications

• Commercial name: COMFORT M9400
• Brand: Alumil
• Frame depth: 45 mm
• Maximum glazing thickness: 4 mm – 39 mm
• Glazing: Single, Double, Triple
• Thermal insulation: No (non-insulated system)
• Sealing method: Perimetrical at 3 levels with EPDM gaskets
• Locking mechanism: Perimetrical locking mechanism
• Maximum sash weight: up to 180 kg
• Minimum threshold height: 10 mm
• Minimum visible aluminium face height: 103 mm
• Suitable for: all entrance door typologies
