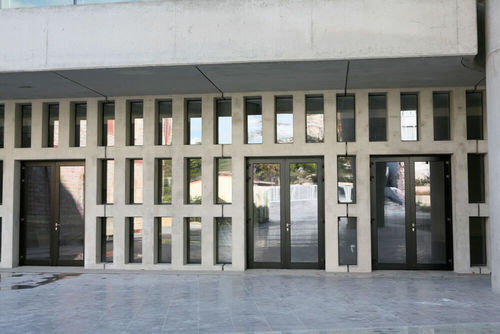

Entry door SMARTIA M15000

aluminiumswingcontemporary

Overview
SMARTIA M15000 is a non‑insulated aluminium entrance door system designed for architectural applications where an elegant flat exterior, high functionality and reliable security are required. It supports glazed or solid panels and a broad range of door configurations suitable for commercial and residential projects.

Advantages

• Cost‑effective non‑insulated solution for entrance doors
• Satisfying burglar resistance class (RC2)
• Good acoustic performance for a non‑insulated system
• Multiple profile designs for architectural integration
• High operational functionality and compatibility with heavy sashes

General
THERMAL INSULATION: No
EXTERIOR SHAPE: Flat

Technical Characteristics
FRAME DEPTH: 50 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61 mm
GLAZING TYPE: Single - Double
MAXIMUM GLAZING THICKNESS: 5 up to 40 mm
MECHANISM: Perimetrical locking mechanism
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 18.5 mm

Performance
BURGLAR RESISTANCE: RC2

Features
SASH DEPTH: 50 mm
TYPES OF TYPOLOGY: For all entrance door typologies with glass or aluminium panels
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 116.4 mm
SASH WEIGHT CAPACITY: up to 180 Kg

Typologies
All available typologies

• Hinged door inward/outward
• Double‑leaf door inward/outward opening
• Hinged door with insulation panel & fixed pane (inward/outward)
• Hinged door with insulation panel, fixed pane & fanlight (inward/outward)

Specifications

• Brand/Series: SMARTIA (Alumil)
• Model: SMARTIA M15000
• Thermal insulation: No (non‑insulated system)
• Frame depth: 50 mm
• Sash depth: 50 mm
• Minimum visible aluminium face width (central vertical/adjoining profile): 61 mm
• Minimum visible aluminium face height: 116.4 mm
• Glazing type: Single / Double
• Maximum glazing thickness: 5–40 mm
• Mechanism: Perimetrical locking mechanism
• Sealing: Perimetrical at 3 levels with EPDM gaskets
• Minimum threshold height: 18.5 mm
• Sash weight capacity: up to 180 Kg
• Exterior shape: Flat
• Burglar resistance: RC2
• Suitable for: all entrance door typologies with glass or aluminium panels
