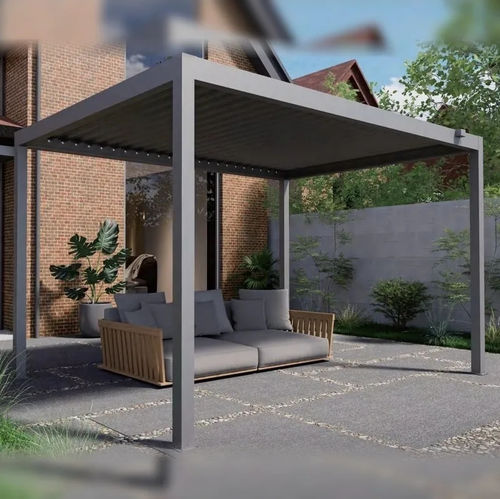

Wall-mounted pergola ST-100-C-KD

self-supportingsteelwith mobile slats

Short description
A best-selling manual louvered steel pergola for mainstream patio, garden, deck and light commercial shade projects. The ST-100-C-KD features 180.3 x 34.5 mm louver blades, 60 kg/m²+ load capacity, 120° adjustable roof rotation and standard sizes up to 3 x 6 m, with optional zip screens, LED lighting and OEM/ODM support.

Key features

• Manual louvered roof with 120° rotation
• Large louver blade: 180.3 x 34.5 mm
• Posts: 100 x 100 mm
• Side beam: 150 x 35 mm
• Integrated water gutter: 56.33 x 30.8 mm
• Load capacity: 60 kg/m²+
• Standard sizes: 3x3 m, 3x4 m, 3x6 m (height 2.4 m standard)
• Optional zip screens (manual or motorized)
• Optional LED strips: warm white, white or RGB
• OEM/private-label packaging and accessory support

Product data (summary)
Category: Steel Pergola
Model: ST-100-C-KD
Roof type: Manual Louver
Post: 100 x 100 mm
Louver blade: 180.3 x 34.5 mm
Side beam: 150 x 35 mm
Water gutter: 56.33 x 30.8 mm
Standard sizes: 3 x 3 m / 3 x 4 m / 3 x 6 m
Available sizes (typical): 3 x 3 x 2.4 m / 3 x 4 x 2.4 m / 3 x 6 x 2.4 m
Load capacity: 60 kg/m²+
Zip screen: Manual or motorized option
LED strips: Warm white / white / RGB
Product position: Best-selling manual steel pergola

Procurement notes

• MOQ: 1 set (buyers may order one set to inspect structure, coating and accessories)
• Sample: sample support available to evaluate finish and hardware
• Quote requirements: provide size, quantity, destination market, screen option, LED requirement and any OEM packaging or branding requests
• Prepared for B2B supply and private-label configurations

Selling points

• Large louver blade (180.3 mm) gives stronger visual and structural presence
• 60 kg/m²+ load capacity supports stronger project specifications
• 120° louver rotation balances sunlight, shade and ventilation
• Three standard sizes provide broad project coverage including patios, decks and terraces
• Channel-ready platform: add screens, lighting and private-label packaging

Configuration and options

• Manual louver roof (standard)
• Size options: 3x3 m, 3x4 m, 3x6 m
• Side protection: zip screens (manual or motorized), sliding shutters, slat walls (fixed or turnable)
• Lighting: integrated LED strips (warm white, white, RGB)
• Enclosures: glass sliding or folding doors for outdoor room configurations
• Dealer packaging and accessory kits available

Drainage detail
The pergola uses a defined integrated gutter profile (56.33 x 30.8 mm) to manage roof drainage and everyday outdoor use; clear gutter profile helps technical comparison and quoting.

Installation

• Wall-mounted direction: suitable when the pergola sits beside an existing wall, patio edge or terrace.
• Freestanding direction: four-post placement for gardens, backyards, display areas and outdoor seating layouts.

Colors & add-ons

• Typical color swatches: Light Neutral, Graphite Grey, Dark Charcoal
• Accessories: LED louver lighting, zip blind (manual or motorized), sliding shutter, adjustable louver wall, fixed slat wall, glass sliding door, folding glass door

Model comparison (summary)
Model | Position | Roof | Sizes | Best for
ST-100-C-KD | Best-selling manual model | Manual | 3x3m, 3x4m, 3x6m | Mainstream patio, garden and outdoor seating supply
ST-100-A | Entry cost model | Manual | 3x3m, 3x4m | Dealer promotion and starter lines
ST-100-B-KD | Cost-effective standard model | Manual | 3x3m, 3x4m, 3x6m | Standard size coverage with lower positioning
SA-100-A-KD | Hybrid material model | Manual | 3x3m, 3x4m, 3x6m | Aluminum appearance with cost control
AL-120-B-KD | Premium aluminum model | Manual or motorized | 3x3m, 3x4m | Refined appearance and hidden mechanism details

Factory & delivery (process)

• Step 01 — Specification confirmation: confirm size, profile data, roof operation, screen and LED requirements
• Step 02 — Component preparation: posts, louvers, side beams, gutters, hardware and optional kits prepared to order
• Step 03 — Packing review: packing and accessory sets reviewed for channel needs
• Step 04 — B2B delivery: order communication prepared for importer/distributor handover

Applications

• Garden pergola: mainstream garden shade
• Backyard pergola: backyard outdoor living projects
• Patio pergola: manual louver patio and terrace shade
• Deck pergola: deck shade with 3x6 m size coverage
• Commercial pergola: outdoor seating and project-based shade for hospitality and public spaces

FAQ (selected)

• Q: What is the main position of the ST-100-C-KD? A: It is a best-selling manual steel pergola for mainstream patio, garden and light commercial shade projects.
• Q: How is it different from ST-100-B-KD? A: ST-100-C-KD uses a larger 180.3 x 34.5 mm louver blade and supports 60 kg/m²+ load capacity for a stronger main model position.
• Q: Can it include zip screens or LED lights? A: Yes — zip screens are available manual or motorized; LED strips come in warm white, white or RGB.
• Q: What information is required for quoting? A: Target size, quantity, destination country, screen option, LED requirement and any OEM packaging or branding preferences.

Technical specifications

• Model: ST-100-C-KD
• Category: Steel Pergola
• Roof type: Manual louver
• Post profile: 100 x 100 mm
• Louver blade: 180.3 x 34.5 mm
• Side beam: 150 x 35 mm
• Water gutter profile: 56.33 x 30.8 mm
• Standard / available sizes: 3 x 3 x 2.4 m; 3 x 4 x 2.4 m; 3 x 6 x 2.4 m
• Load capacity: 60 kg/m²+
• Louver rotation: up to 120°
• Zip screen: manual or motorized option
• LED strips: warm white / white / RGB
• Mounting: wall-mounted or freestanding
• MOQ: 1 set
• OEM/ODM: private-label packaging, accessory kits and documentation support
