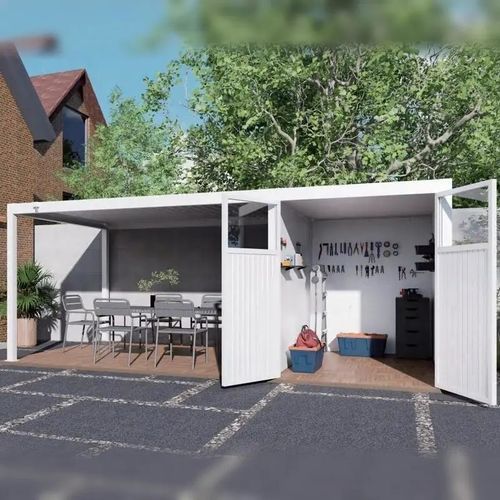

Wall-mounted pergola ST-100-TS-KD

self-supportingsteelwith mobile slats

Overview
A manual louvered steel pergola combining a cooling pavilion and an integrated tool-house for outdoor storage. The ST-100-TS-KD features 180.3 x 34.5 mm louver blades, a 60 kg/m²+ load capacity and a 120° adjustable roof rotation. Standard available footprints: 3 x 5 m and 3 x 6 m (height 2.4 m). Ideal for backyard shade, garden storage and organized outdoor living.

Key Features

• Manual louver roof with 120° adjustable rotation for control of sunlight, shade and ventilation
• Integrated tool-house/storage room directly attached to the pergola structure
• Robust blade profile: 180.3 x 34.5 mm louver blades
• Load capacity: 60 kg/m²+
• Standard post profile: 100 x 100 mm
• Side beam: 150 x 35 mm
• Water gutter: 56.33 x 30.8 mm
• Standard sizes: 3 x 5 x 2.4 m and 3 x 6 x 2.4 m

Product Data
Model : ST-100-TS-KD
Category : Pergola with Storage
Roof Type : Manual Louver
Standard Sizes : 3 x 5 m / 3 x 6 m (available as 3 x 5 x 2.4 m / 3 x 6 x 2.4 m)
Load Capacity : 60 kg/m²+
Post : 100 x 100 mm
Louver Blade : 180.3 x 34.5 mm
Side Beam : 150 x 35 mm
Water Gutter : 56.33 x 30.8 mm
Louver Roof Operation : Manual
Zip Screen : Manual or motorized option
LED Strips : Warm white / white / RGB option
Product Position : Cooling pavilion plus tool-house storage

Selling Points

• 2-in-1 solution: shade and organized tool storage in a single product
• Available in compact (3 x 5 m) and larger (3 x 6 m) backyard footprints
• Distinct roof presence from 180.3 mm blade profile for visual and structural definition
• 60 kg/m²+ rating supports stronger structural specification

Configuration & Add-ons

• Tool-house orientation and internal layout for garden storage
• Optional zip blinds (manual or motorized) for privacy and lateral shade
• LED louver lighting: warm white, white or RGB
• Side options: sliding shutters, adjustable louver walls, fixed slat walls
• Glass options: sliding glass door or folding glass door for enclosed storage room

Installation Options

• Wall-adjacent layout: installed beside a wall, patio edge or boundary for direct access
• Freestanding layout: four-post installation for standalone pavilion with integrated storage

Recommended Applications

• Garden storage: secure and shaded tool-house for garden equipment
• Backyard pavilion: functional shade with integrated storage for outdoor living
• Patio utility zone: manual louver shade adjacent to service or storage areas
• Deck storage corner: organized shade and storage near decks or paths
• Light commercial: facility storage zones and sheltered outdoor storage

Notes
Quoted as a combined shade-and-storage package. LED lighting, zip screens and side elements are optional to create a complete garden-living solution.

Technical specifications

• Model: ST-100-TS-KD
• Post: 100 x 100 mm
• Louver Blade: 180.3 x 34.5 mm
• Side Beam: 150 x 35 mm
• Water Gutter: 56.33 x 30.8 mm
• Available Sizes: 3 x 5 x 2.4 m; 3 x 6 x 2.4 m
• Roof Type / Operation: Manual louver roof (manual operation)
• Load Capacity: 60 kg/m²+
• Zip Screen: Manual or motorized option
• LED Strips: Warm white / white / RGB options
• Product Positioning: Cooling pavilion plus tool-house storage
