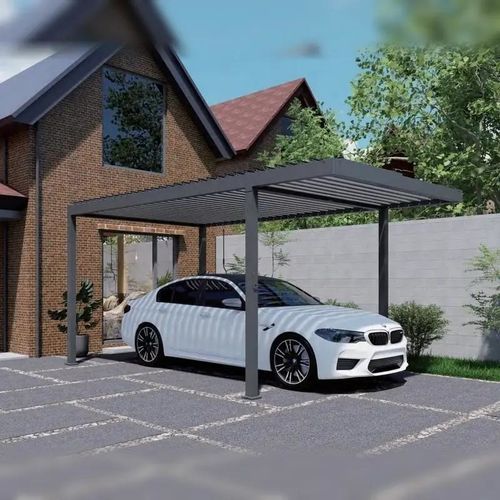

Domestic use carport ST-100-E-KD

garagefor parking lotscustomizable

Product overview
A high-end manual louvered steel pergola designed for driveway, carport and premium vehicle-shade projects. The ST-100-E-KD features 180.3 x 34.5 mm louver blades, 60 kg/m²+ load capacity, 120° adjustable roof rotation and a focused 3 x 5 x 2.5 m size for one-car parking bays, villa driveways and entrance canopy projects.

Key features

• Model: ST-100-E-KD
• Category: Parking canopy / driveway shade
• Roof type: Manual louver (120° rotation)
• Standard footprint: 3 x 5 x 2.5 m (one-car coverage)
• Louver blade: 180.3 x 34.5 mm
• Post: 100 x 100 mm
• Side beam: 150 x 35 mm
• Water gutter profile: 56.33 x 30.8 mm
• Load capacity: 60 kg/m² +
• Roof operation: Manual louver rotation (up to 120°)
• Zip screen: manual or motorized option
• LED strips: warm white / white / RGB options
• Positioning: wall-adjacent or freestanding (four-post)

Accessories & add-ons

• LED louver lighting (warm white / white / RGB)
• Zip blind (manual or motorized)
• Sliding shutter
• Adjustable louver wall
• Fixed slat wall
• Glass sliding door
• Folding glass door

Product data (specification table)
Model: ST-100-E-KD
Category: Parking Canopy
Roof Type: Manual Louver
Standard Size: 3 x 5 x 2.5 m
Post: 100 x 100 mm
Louver Blade: 180.3 x 34.5 mm
Side Beam: 150 x 35 mm
Water Gutter: 56.33 x 30.8 mm
Available Size: 3 x 5 x 2.5 m (standard)
Louver Roof: Manual operation (120° rotation)
Zip Screen: Manual or motorized option
LED Strips: Warm white / white / RGB option
Product Position: High-end parking canopy / driveway shade model

Selling points

• One-car coverage in a compact 3 x 5 m format for villa driveways and residential parking upgrades.
• Heavy-profile louvers (180.3 x 34.5 mm) for a premium visual and structural presence.
• 60 kg/m²+ load capacity for stronger structural performance and confidence in vehicle-shade projects.
• Manual adjustable louver roof offers flexible sunlight, shade and airflow control above parked vehicles.
• LED and screen accessory paths enable night-time and privacy upgrades for premium driveway presentation.

Installation & configuration

• Wall-adjacent driveway installation: mounts beside a garage/entrance wall or boundary side.
• Freestanding parking bay: four-post placement creates an independent vehicle-shade area.
• Configurable color finishes and accessory packages (lighting, side screens, sliding or folding glass) to suit project needs.

Applications

• Villa pergola: premium one-car shade near residential entrances and driveway spaces.
• Carport pergola: manual louver canopy for driveway parking bays and vehicle shade.
• Garden / deck / commercial uses where a refined vehicle-shade product is required.

Technical specifications

• Model: ST-100-E-KD
• Category: Parking Canopy
• Standard size: 3 x 5 x 2.5 m
• Post dimension: 100 x 100 mm
• Louver blade dimension: 180.3 x 34.5 mm
• Side beam: 150 x 35 mm
• Water gutter profile: 56.33 x 30.8 mm
• Load capacity: 60 kg/m²+
• Roof operation: Manual louver rotation up to 120°
• Zip screen: manual or motorized option
• LED lighting: warm white / white / RGB options
• Available finishes: Light Neutral, Graphite Grey, Dark Charcoal
• Packaging & project options: OEM color, lighting, screen and private-label packing available
