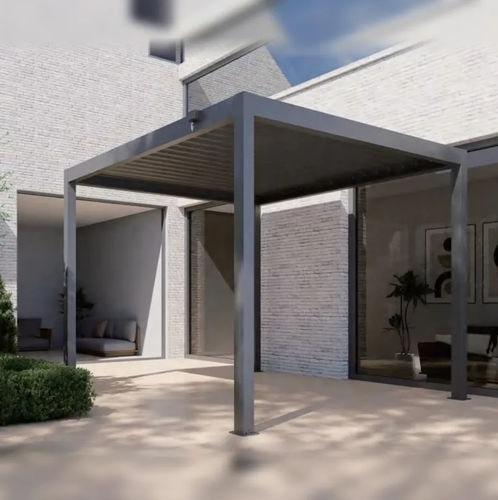

Wall-mounted pergola ST-100-B-KD

self-supportingsteelwith mobile slats

Product Overview
A cost-effective manual louvered steel pergola engineered for projects requiring larger coverage and reliable structural blades without premium pricing. The ST-100-B-KD features 150 x 34 mm louver blades, a design load of 50 kg/m²+, 120° adjustable roof rotation and standard sizes up to 3 x 6 m.

Key Features

• Manual louvered roof with up to 120° rotation for controlled sunlight, shade and ventilation.
• 150 x 34 mm louver blade profile for enhanced roof rigidity compared with entry-level blades.
• Load capacity: 50 kg/m²+ suitable for residential and light commercial use.
• Post section: 100 x 100 mm for standard structural support.
• Side beam: 150 x 35 mm.
• Integrated water gutter profile: 56.33 x 30.8 mm for roof drainage.
• Standard sizes: 3 x 3 m, 3 x 4 m, 3 x 6 m (standard height 2.4 m).
• Zip screen option: available manual or motorized side screens.
• LED strip options: warm white / white / RGB.

Specification Table
Model: ST-100-B-KD
Category: Steel Pergola
Roof Type: Manual Louver
Standard Sizes: 3x3 m / 3x4 m / 3x6 m
Load Capacity: 50 kg/m²+
Post: 100 x 100 mm
Louver Blade: 150 x 34 mm
Side Beam: 150 x 35 mm
Water Gutter: 56.33 x 30.8 mm
Available Sizes (L x W x H): 3 x 3 x 2.4 m / 3 x 4 x 2.4 m / 3 x 6 x 2.4 m
Louver Roof Operation: Manual rotation up to 120°
Zip Screen: Manual or motorized option
LED Strips: Warm white / white / RGB option
Product Position: Cost-effective standard steel pergola for larger coverage

Selling Points

• Stronger 150 x 34 mm blade profile delivers a more substantial roof structure than thin-blade entry models.
• 50 kg/m²+ load capacity suitable for typical residential and light commercial installations.
• 120° adjustable louvers allow precise control of sunlight, shade and airflow.
• Larger standard size (3 x 6 m) provides extended patio and seating coverage without premium pricing.
• Upgrade-ready platform: integrate zip screens, LED lighting and accessory kits to increase functionality and value.

Drainage Detail
Integrated gutter profile (56.33 x 30.8 mm) routed within beam geometry to manage everyday rainwater and louver runoff.

Installation

• Wall-mounted configuration: suitable when installed adjacent to an existing wall, building side or patio edge.
• Freestanding configuration: four-post installation for gardens, yards and open terraces.

Colors & Add-ons

• Standard finishes: Light Neutral, Graphite Grey, Dark Charcoal.
• Accessory options: LED louver lighting (warm white / white / RGB), Zip blind (manual or motorized), sliding or folding glass doors, adjustable louver walls, fixed slat walls.

Applications

• Garden and backyard pergolas
• Patio and terrace shade
• Deck cover and outdoor living areas
• Commercial outdoor dining areas — restaurants, hotels, cafés
• Poolside shade and privacy screens
• Outdoor kitchens and grill stations

FAQ

• What is the primary position of the ST-100-B-KD? — A cost-effective standard steel pergola aimed at buyers needing larger coverage and stronger blade specs than entry models.
• How does it differ from ST-100-A? — ST-100-B-KD uses larger 150 x 34 mm louvers and offers a 3 x 6 m size option; ST-100-A is an entry-level model with smaller blades.
• Can it include zip screens or LED lights? — Yes. Zip screens are available in manual or motorized versions; LED strips are available in warm white, white or RGB.

Technical specifications

• Model: ST-100-B-KD
• Category: Steel Pergola
• Roof Type: Manual Louver
• Post: 100 x 100 mm
• Louver Blade: 150 x 34 mm
• Side Beam: 150 x 35 mm
• Water Gutter: 56.33 x 30.8 mm
• Load Capacity: 50 kg/m²+
• Standard Size (L x W x H): 3 x 3 x 2.4 m / 3 x 4 x 2.4 m / 3 x 6 x 2.4 m
• Operation: Manual rotation up to 120°
• Side Screen Options: Zip screen (manual or motorized)
• Lighting Options: LED strips (warm white / white / RGB)
• MOQ: 1 Set
• Sample: Free (sample support for coating, hardware and accessory evaluation)
• Product Position: Cost-effective standard steel pergola suitable for dealers and project supply
