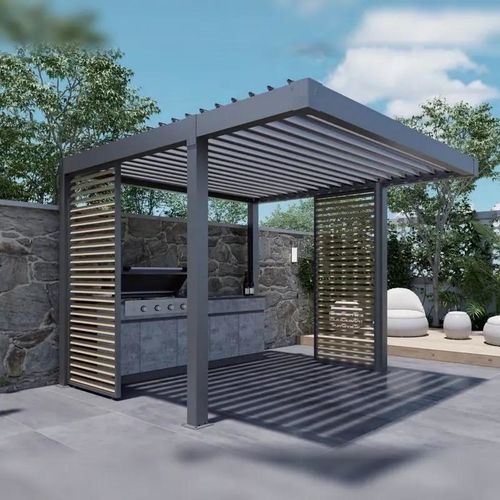

Wall-mounted pergola ST-100-D-KD

self-supportingsteelwith mobile slats

Overview
A compact manual louvered steel pergola designed for outdoor kitchen, barbecue and patio cooking spaces. The ST-100-D-KD is built as a focused kitchen pavilion for grill islands, backyard bars and compact cooking corners, offering manual roof ventilation control and accessory routes for lighting and screening.

Key features

• Compact outdoor kitchen pavilion sized for grill islands and patio cooking corners.
• Manual louvered roof with up to 120° rotation for shade, sunlight control and smoke ventilation.
• Strong louver blade profile: 180.3 x 34.5 mm.
• Load capacity: 60 kg/m² + for confident project specification.
• Standard footprint/size oriented to kitchen use: 2.5 x 2.95 x 2.4 m (standard module).
• Structural elements: posts 100 x 100 mm; side beam 150 x 35 mm; integrated water gutter 56.33 x 30.8 mm.
• Accessory routes: zip screens (manual or motorized), LED strip lighting (warm white / white / RGB), sliding shutters, slat walls, glass doors, folding glass options.

Product summary (short)
A compact manual louver steel pergola built around outdoor cooking scenes. Compact footprint fits outdoor kitchen islands and patio bars; manual 120° louver rotation balances shade, smoke ventilation and sunlight.

Product data
Category: Steel Kitchen Pergola
Roof Type: Manual Louver
Standard Size: 2.5 x 2.95 x 2.4 m
Load Capacity: 60 kg/m²+

Compare table (selected models)
Model | Position | Roof | Sizes | Best For
ST-100-D-KD | Outdoor kitchen model | Manual | 2.5 x 2.95 m | Grill islands, patio bars and compact cooking corners
ST-100-C-KD | Mainstream best seller | Manual | 3 x 3 m, 3 x 4 m, 3 x 6 m | Patio, garden and light commercial shade projects
ST-100-TS-KD | Pavilion with tool-house use | Manual | Project-based | Backyards needing shade plus storage function
AL-120-B-KD | Premium aluminum model | Manual or motorized | 3 x 3 m, 3 x 4 m | Projects needing refined aluminum appearance and upgraded positioning

Why buyers choose the ST-100-D-KD

• Kitchen-ready footprint: compact 2.5 x 2.95 m bay works over grills and prep counters.
• Strong blade presence: 180.3 x 34.5 mm louver blade for a substantial roof appearance.
• Project load story: 60 kg/m²+ supports project and dealer quotations.
• Ventilation control: 120° manual louver rotation for smoke and heat release.
• Evening upsell: LED strip options (warm white / white / RGB) for night use.

Configuration & build options

• Installation modes: freestanding grill bay (four-post placement) or wall-adjacent kitchen (placed beside an exterior wall or built-in counter).
• Screens: zip screens available as manual or motorized options for side shade and privacy.
• Lighting: integrated LED louver lighting available in warm white, white or RGB.
• Side elements: sliding shutters, adjustable louver walls, fixed slat walls, glass sliding doors or folding glass doors to create premium enclosures.
• OEM / private-label packaging: color, accessory grouping, instructions and private-label materials can be configured per project.

Installation notes

• Two layout directions supported: wall-adjacent kitchen placement or freestanding grill bay.
• Confirm target layout, accessory choices (screens, LEDs), color and packing route before production.

Recommended applications

• Backyard cooking and compact grill stations.
• Patio kitchens above barbecue counters and prep zones.
• Garden bars and small outdoor hospitality counters.
• Deck grill bays and focused shade for outdoor cooking.

Caractéristiques / spécifications techniques

• Model: ST-100-D-KD
• Category: Steel Kitchen Pergola
• Product position: Outdoor kitchen pavilion / compact cooking shade model
• Standard size (module): 2.5 x 2.95 x 2.4 m
• Post: 100 x 100 mm
• Side beam: 150 x 35 mm
• Louver blade: 180.3 x 34.5 mm
• Water gutter: 56.33 x 30.8 mm
• Louver roof operation: Manual, up to 120° rotation
• Load capacity: 60 kg/m²+
• Zip screen: Manual or motorized option
• LED strips: Warm white / white / RGB options
• Available accessories: Zip blind, sliding shutter, adjustable louver wall, fixed slat wall, glass sliding door, folding glass door, LED louver lighting
