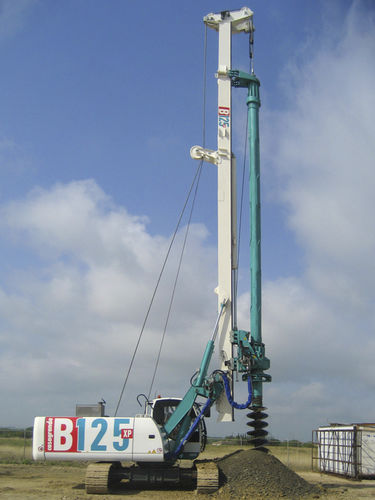

Diesel engine drilling rig B125 XP rotaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
800 mm, 1,500 mm
(31 in, 59 in)- Drilling depth
23 m/s², 50 m/s²
(75.46 ft/s², 164.04 ft/s²)
Description
Max depth50 m
Max diameter1500 mm
Max depth C.F.A.23 m
Max diameter C.F.A.800 mm
Engine power164 kW
Width of crawler2500÷3700 mm
Shoes width600 mm
MAIN WINCH
Line pull160 kN
AUXILIARY WINCH
Line pull70 kN
CROWD – RAM
Extraction force148 kN
Crowd force114 kN
Stroke3800 mm
ROTARY HEAD
Torque125 kNm
Drilling speed33 rpm
WEIGHT
Weight in working condition37000 kg
VIDEO
Catalogs
B125 XP
20 Pages
