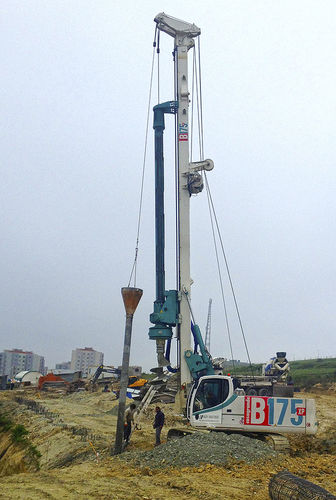

Diesel engine drilling rig B175 XProtaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
900 mm, 1,500 mm
(35 in, 59 in)- Drilling depth
23 m/s², 57 m/s²
(75.46 ft/s², 187.01 ft/s²)
Description
Max depth57 m
Max diameter1500 m
Max depth C.F.A.23 m
Max diameter C.F.A.900 mm
Engine power194 kW
Width of crawler2500÷3700 mm
Shoes width600 mm
MAIN WINCH
Line pull160 kN
AUXILIARY WINCH
Line pull70 kN
CROWD – RAM
Extraction force148 kN
Crowd force114 kN
Stroke3800 mm
CROWD – WINCH
Extraction force240 kN
Crowd force240 kN
Stroke12930 mm
ROTARY HEAD
Torque160 kNm
Drilling speed32 rpm
WEIGHT
Weight in working condition41 t
