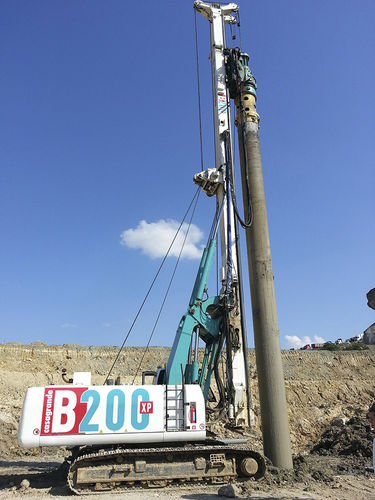

Diesel engine drilling rig B200 XProtaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
1,000 mm, 2,200 mm
(39 in, 87 in)- Drilling depth
26 m/s², 67 m/s²
(85.3 ft/s², 219.82 ft/s²)
Description
Max depth67 m
Max diameter2200 mm
Max depth C.F.A.26 m
Max diameter C.F.A.1000 mm
Engine power227 kW
Width of crawler2500 ÷ 3900 mm
Shoes width700 mm
MAIN WINCH
Line pull240 kN
AUXILIARY WINCH
Line pull83 kN
CROWD – RAM
Extraction force260 kN
Crowd force160 kN
Stroke6000 mm
CROWD – WINCH
Extraction force280 kN
Crowd force280 kN
Stroke13700 mm
ROTARY HEAD
Torque210 kNm
Drilling speed34 rpm
WEIGHT
Weight in working condition63000 kg
Catalogs
B200 XP
24 Pages
