- Building & Construction
- Construction site equipment
- Diesel engine drilling rig
- CASAGRANDE - Foundation Division

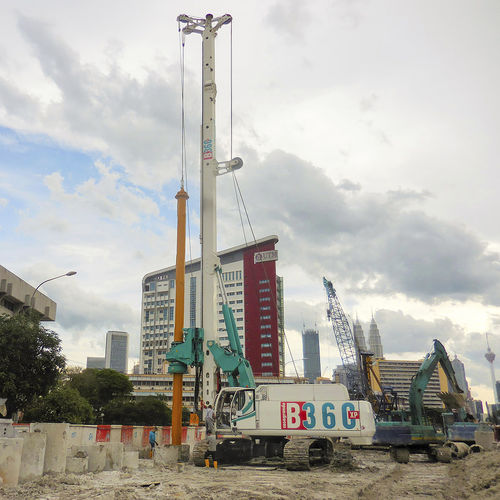

Diesel engine drilling rig B360 XProtaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
1,200 mm, 3,000 mm
(47 in, 118 in)- Drilling depth
29.5 m/s², 89.3 m/s²
(96.78 ft/s², 292.98 ft/s²)
Description
Max depth89,3 m
Max diameter3000 mm
Max depth C.F.A.29,5 m
Max diameter C.F.A.1200 mm
Engine power403 kW
Width of crawler3500/5000 mm
Shoes width1000 mm
MAIN WINCH
Line pull360 kN
AUXILIARY WINCH
Line pull140 kN
CROWD – RAM
Extraction force400 kN
Crowd force250 kN
Stroke7000 mm
CROWD – WINCH
Extraction force600 kN
Crowd force600 kN
Stroke19000 mm
ROTARY HEAD
Torque400 kNm
Drilling speed25 rpm
WEIGHT
Weight in working condition115 t
VIDEO
Catalogs
B360 XP – CFA Piling rig
24 Pages
