- Diesel engine drilling rig
- CASAGRANDE - Foundation Division

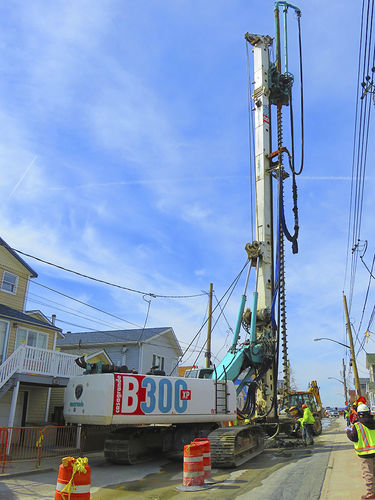

Diesel engine drilling rig B300 XProtaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
1,200 mm, 2,500 mm
(47 in, 98 in)- Drilling depth
29 m/s², 90 m/s²
(95.14 ft/s², 295.28 ft/s²)
Description
Max depth90 m
Max diameter2500 mm
Max depth C.F.A.29 m
Max diameter C.F.A.1200 mm
Engine power403 kW
Width of crawler3000÷4480 mm
Shoes width900 mm
MAIN WINCH
Line pull270 kN
AUXILIARY WINCH
Line pull134 kN
CROWD – RAM
Extraction force400 kN
Crowd force250 kN
Stroke7000 mm
CROWD – WINCH
Extraction force400 kN
Crowd force400 kN
Stroke19000 mm
ROTARY HEAD
Torque300 kNm
Drilling speed29 rpm
WEIGHT
Weight in working condition90000 kg
Catalogs
B300 XP – CFA Piling rig
24 Pages
