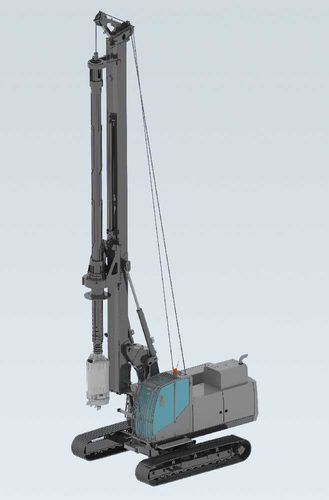

Diesel engine drilling rig C20

rotarycrawlerpiling

Casagrande’s new series of Classic hydraulic piling rigs are designed and built using the latest state-of the-art techniques. A range of machines engineered to satisfy the needs of the most demanding contractor with emphasis on performance, reliability and economy. Keep the operator happy in a comfortable working environment” is our formula for added productivity. The C20 is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality. C20 Piling Rig - EU - USA Max depth - 37 m - 121.4 ft Max depth C.F.A. - 16,6 m - 54.5 ft Max diameter C.F.A. - 800 mm - 31.5 in Engine power - 142 kW - 190 HP Width of crawler - 2550÷3750mm - 8.2÷12.1 ft Shoes width - 600 mm - 23.6 in MAIN WINCH - - Line pull - 150 kN - 33,720 lbf AUXILIARY WINCH - - Line pull - 70 kN - 15,740 lbf CROWD – RAM - - Extraction force - 190 kN - 42,700 lbf Crowd force - 110 kN - 24,730 lbf Stroke - 3800 mm - 11.5 ft ROTARY HEAD - - Torque - 100 kNm - 73,760 lbf·ft Drilling speed - 34 rpm - 34 rpm WEIGHT - - Weight in working condition - 28,5 t - 62,830 lbs
