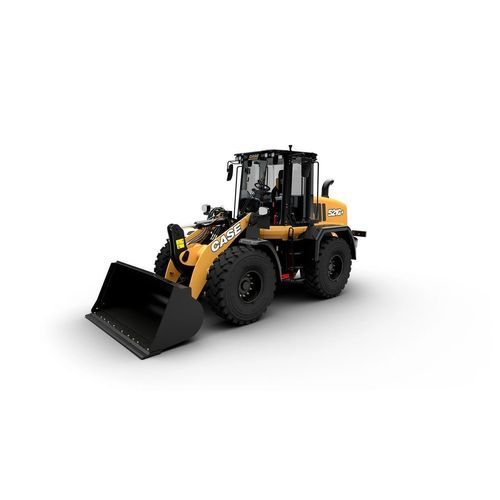

Rubber-tired loader 521G+

dieselfor construction

Overview
The 521G+ small loader is part of the new G+ series wheel loaders by CASE Construction Equipment. The 521G+ is powered by an FPT N45 engine delivering up to 142 hp (106 kW). Designed for versatile use in infrastructure, recycling and quarry operations, it offers a full turn tipping load up to 7,673 kg and a maximum bucket capacity of 2.1 m³. Linkage options include Z‑Bar, XR and XT, and the machine is compatible with agri tyre configurations. Stage V emissions compliance is standard.

Key points

• Engine: FPT N45, up to 142 hp (106 kW)
• Full turn tipping load: up to 7,673 kg
• Bucket capacity: up to 2.1 m³
• Bucket payload (quick spec): 3.1 - 3.8 t
• Linkage options: Z‑Bar, XR and XT
• Stage V emissions compliance
• Agri tyre compatibility

Available model family (example in brochures)
G+ Series Wheel Loaders: 521G+, 621G+, 721G+, 821G+, 921G+

Compatible attachments (examples)

• General purpose bucket — suitable for a wide range of tasks including handling aggregates such as gravel and sand; optimised for productivity and fuel efficiency.
• Grapple bucket — designed for handling bulky material and waste; available in multiple configurations.
• High tip buckets — for rehandling and dumping materials at elevated heights (truck, trailer, hopper); offered in sizes to suit rehandling applications.
• Light material bucket — for stockpiling and handling low-density materials with maximum volume capacity.

Downloads
Brochure available for the G+ series wheel loaders (multi-model brochure referencing 521G+/621G+/721G+/821G+/921G+). No document URLs are provided here.

Technical specifications

• Model: 521G+
• Engine model: FPT N45
• Engine power: 106 kW / 142 hp
• Full turn tipping load: up to 7,673 kg
• Bucket capacity: up to 2.1 m³
• Bucket payload (quick spec): 3.1 - 3.8 t
• Linkage options: Z‑Bar, XR, XT
• Emissions level: Stage V compliant
• Tyre compatibility: agri tyre options available
