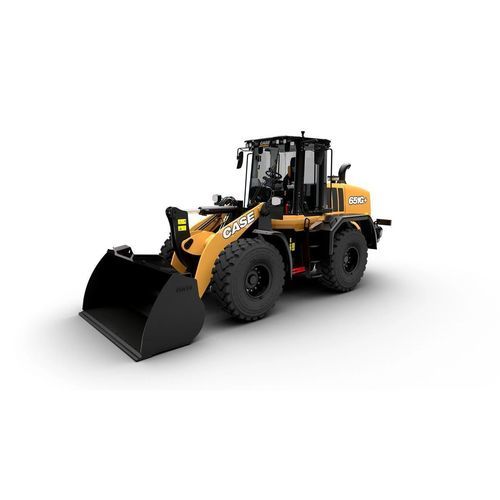

Rubber-tired loader 651G+

dieselfor construction

Overview
The 651G+ wheel loader is part of the new G+ series wheel loaders by CASE Construction Equipment. The 651G+ is powered by an FPT N67 engine with up to 172 horsepower.
Designed to withstand up to 10,340 kg of full turn tipping load, and a bucket capacity of up to 2.6 m³, this wheel loader is suited for all-around usage in infrastructure, recycling and quarrying projects.

Solutions

• CASE SiteConnect: Reduce your Total Cost of Ownership by increased connectivity resulting in more efficient service.
• CASE Protect: Extended warranty program to help avoid unexpected costs.
• CASE SiteControl™: Machine control solutions (Leica iCONstruct portfolio) customizable for road and building construction applications.

Compatible attachments

• General purpose bucket: Suitable for handling aggregates such as gravel and sand, optimized for productivity and fuel efficiency.
• Grapple bucket: Designed for handling bulky material and waste, available in multiple configurations.
• High tip buckets: For rehandling and dumping materials at high levels such as truck, trailer or hopper; available in a wide range for rehandling applications.
• Light material bucket: Designed for stockpiling and handling lightweight materials with maximum volume capacity.

Downloads
Brochure available: "G+ Series Wheel Loaders - 521G+/621G+/721G+/821G+/921G+" (15.45 MB).

Quick specifications

• Engine model: FPT N67.
• Engine power: 128 kW / 172 hp.
• Full turn tipping load: up to 10,340 kg.
• Bucket capacity: up to 2.6 m³ (rehandling bucket).
• Bucket payload: 4.1 - 5.2 ton.

Technical specifications

• Model: 651G+
• Brand: CASE Construction Equipment
• Engine: FPT N67
• Engine power: 128 kW / 172 hp
• Full turn tipping load: up to 10,340 kg
• Bucket capacity (rehandling): up to 2.6 m³
• Bucket payload: 4.1 - 5.2 ton
• Primary applications: infrastructure, recycling, quarrying
• Compatible attachments: General purpose bucket; Grapple bucket; High tip buckets; Light material bucket
• Available specification categories on product page: ENGINE; TRANSMISSION; TRANSMISSION (X-DRIVE); AXLES (available options); TIRES; BRAKES; HYDRAULICS; AUXILIARY HYDRAULICS; FLUIDS CAPACITIES; CAB PROTECTION; NOISE AND VIBRATIONS; ELECTRICAL SYSTEM
