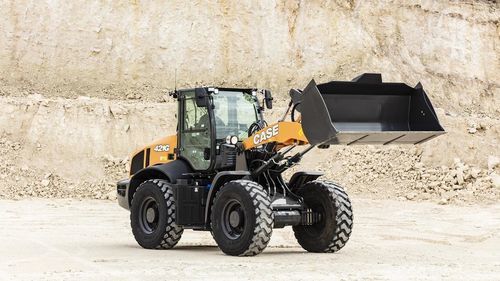

Rubber-tired loader 421G

wheeleddieselfor construction

Overview
The CASE 421G wheel loader combines the agility of a compact machine with the power and features of larger G-Series models. Powered by a 97 hp turbocharged diesel engine with SCR-T emissions technology (Stage V), it offers ECO mode to reduce fuel consumption during light-duty cycles. The machine uses a closed-center hydraulic system with a variable displacement pump for precise, smooth hydraulic control. Standard bucket capacity is 1.5 m³ (SAE) with a breakout force of 7,161 kg. An optional high-flow hydraulic circuit (125 l/min) supports demanding attachments.

Cab and operator comfort
The redesigned cab maximizes visibility and ergonomics with increased glazing, a lowered front console, improved instrument layout and operator-focused controls to reduce fatigue and improve productivity.

Quick specifications

• Payload @50%: 2939 kg
• Bucket Volume (SAE): 1.5 - 1.7 m³

Standard Equipment

• ROPS/FOPS Level II deluxe cab with heater
• Openable right-hand door with sliding window
• Full steering column adjustment
• Air suspended seat
• Seat-mounted EH joystick and cab instrumentation
• Color display with encoder
• Keypad for easy machine setting
• Rear camera
• Radio ready
• Standard weather package
• Emergency steering
• LED work lights
• Two travel speeds with 40 km/h top speed
• ECO mode
• 3rd function
• Cruise control
• Creep speed
• Standard flow (95 lpm)
• Remote drain of hydraulic oil
• Floating function
• Loader arm and bucket response control
• Limited slip differential front & rear
• 17.5 R25 tires
• ISO quick coupler
• Standard bucket
• Emergency tow hook
• Battery disconnect switch
• P&CM modem
• Subscription to CASE Sitewatch and Site-Connect
• Operator manual

Optional Equipment

• Deluxe cab with air conditioning
• Radio with MP3 and USB plug
• Heated air suspension seat
• Wide internal view mirror
• Heated external rear view mirrors
• Front and rear view camera
• Extra steps for right-hand side access to the cab
• Rotating beacon
• Predisposition for fire extinguisher
• Precleaner
• Reverse alarm
• Ride control
• 4th function
• 14-pin front electric socket
• Anti-drop valves
• Extreme weather package
• High flow (125 lpm)
• Return to Travel, Dig, Height
• Speed limiter to 20 km/h
• 15.5 R25 tires
• Snow tires
• Road homologation
• Light materials bucket
• 4-in-1 bucket
• Forks with transport protection

Compatible attachments (examples)

• 4×1 Multipurpose Bucket — versatile tool allowing multiple tasks with a single attachment
• Angle Broom — ideal for quick road cleaning and pushing debris to ditches
• Broom Bucket — equipped with sliding wheels, rear floating system, protection rubber bands and wear resistant cutting knife
• Cold Planer — tool for grinding, milling and road surface preparation

Characteristics / Technical specifications

• Model: 421G
• Brand: CASE
• Engine power: 97 hp (turbocharged diesel)
• Emissions technology: SCR-T (Stage V compliant)
• Standard bucket capacity: 1.5 m³ (SAE); available 1.5 - 1.7 m³
• Breakout force: 7,161 kg
• Hydraulics: closed-center circuit, variable displacement pump
• Standard hydraulic flow: 95 lpm
• Optional high-flow hydraulics: 125 l/min
• Top travel speed: 40 km/h (two travel speeds)
• Payload @50%: 2939 kg
• Tires (standard): 17.5 R25 (optional 15.5 R25; snow tires available)
• Quick coupler: ISO
• Cab features: expanded glass area, lowered front console, color display with encoder, seat-mounted EH joystick
• Operator comfort: air suspended seat (optional heated air suspended seat), keypad for machine settings, radio ready
• Safety/visibility: rear camera (optional front and rear cameras), LED work lights, emergency steering, emergency tow hook
• Connectivity: P&CM modem and subscription to CASE Sitewatch and Site-Connect
