Rubber-tired loader 721G+

dieselfor construction

Overview

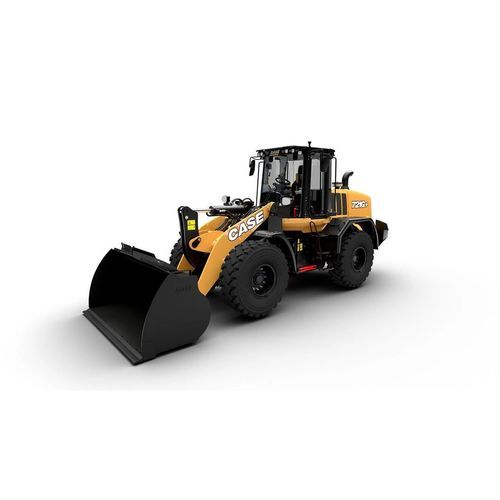

The 721G+ wheel loader is part of the G+ series by CASE Construction Equipment. Powered by an FPT N67 engine delivering up to 145 kW / 195 hp, the 721G+ is designed for mid-range, high-output applications including infrastructure, recycling and quarrying. It supports full-turn tipping loads up to 11467 kg and can work with bucket capacities up to around 3.2 m³ for flexible loading operations.

Key features

• Engine: FPT N67, up to 145 kW / 195 hp
• Linkage options: Z‑Bar, XR and XT
• Transmission: 5-speed
• Bucket options: general purpose (≈3.0 m³) and variants up to 3.2 m³ depending on configuration
• Full-turn tipping load (design): up to 11467 kg
• Bucket payload: 4.9 - 5.7 ton

Compatible attachments

• General purpose bucket
• Grapple bucket
• High tip buckets
• Light material bucket

Downloads
G+ Series Wheel Loaders - 521G+/621G+/721G+/821G+/921G+ (15.45 MB) — brochure available for this series.

Technical specifications

• Model: 721G+
• Brand: CASE Construction Equipment
• Engine model: FPT N67
• Engine power: 145 kW / 195 hp
• Full-turn tipping load (design): up to 11467 kg
• Bucket capacity: up to 3.2 m³ (general purpose example noted at 3.0 m³)
• Bucket payload: 4.9 - 5.7 ton
• Linkage options: Z‑Bar, XR, XT
• Transmission: 5-speed
• Typical applications: infrastructure, recycling, quarrying
