Rubber-tired loader 921G+

dieselfor constructionall-terrain

Overview

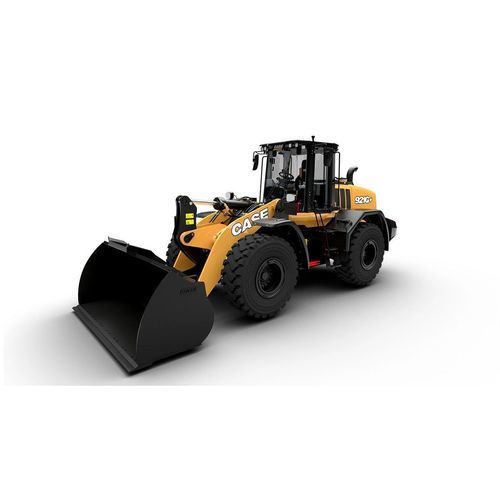

The 921G+ wheel loader is part of the G+ series by CASE Construction Equipment. Powered by an FPT N67 engine delivering up to 255 hp (190 kW), the 921G+ is engineered for heavy bulk handling with a maximum full-turn tipping load of 14,277 kg and a bucket capacity up to 4.2 m³. It is designed for all-around use in infrastructure, recycling and quarrying operations.

Brochures
Brochure available for the G+ Series Wheel Loaders (includes models 521G+, 621G+, 721G+, 821G+, 921G+).

Compatible Attachments

• General purpose bucket — Suitable for a wide range of applications including handling aggregates such as gravel and sand with optimized productivity and fuel efficiency.
• Grapple bucket — Designed for handling bulky materials and waste; available in multiple configurations to match jobsite requirements.
• High tip buckets — For rehandling and dumping into trucks, trailers or hoppers at elevated heights; offered in a range of sizes for rehandling tasks.
• Light material bucket — Engineered for stockpiling and moving low-density materials, maximizing volume capacity.

Usage / Applications
Recommended for infrastructure works, recycling facilities and quarrying where high tipping loads, large bucket volumes and robust material handling are required.

Technical specifications

• Model series: G+ series
• Engine: FPT N67
• Engine power: 190 kW / 255 hp
• Maximum full-turn tipping load: 14,277 kg
• Bucket capacity (maximum): up to 4.2 m³
• Bucket payload: 5.0 - 7.2 ton
