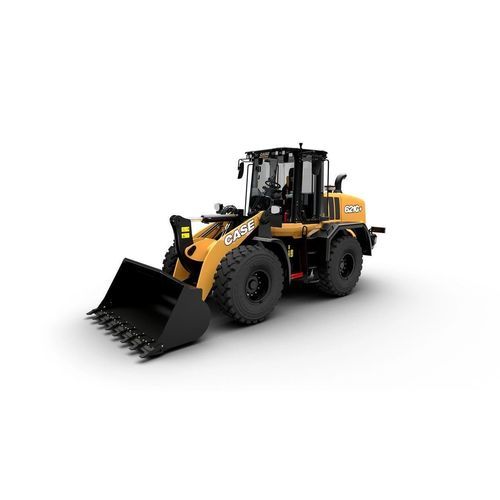

Rubber-tired loader 621G+

dieselfor construction

Overview
The CASE 621G+ wheel loader is a mid-size machine in the G+ series, powered by an FPT N67 6-cylinder engine delivering 128 kW (172 hp). With a full turn tipping load up to 9,248 kg and a bucket capacity up to 2.3 m³, the 621G+ is designed for versatile use across infrastructure, recycling and quarrying operations.

Key features

• FPT N67 6-cylinder engine — 128 kW (172 hp)
• 4- or 5-speed powershift transmission options
• Quick coupler readiness for fast attachment changes
• Click & Dig automated loading function to support efficient cycle control

Available brochure
G+ Series Wheel Loaders brochure (covers 521G+/621G+/721G+/821G+/921G+), 15.45 MB.

Compatible attachments

• General purpose bucket — for aggregates such as gravel and sand; optimised for productivity and fuel efficiency
• Grapple bucket — for handling bulky materials and waste; multiple configurations available
• High tip buckets — for rehandling and dumping at elevated heights (truck, trailer, hopper)
• Light material bucket — maximised volume for stockpiling and handling lightweight materials

Technical specifications

• Engine power: 128 kW / 172 hp
• Engine model: FPT N67 (6-cylinder)
• Transmission: 4- or 5-speed powershift
• Full turn tipping load: up to 9,248 kg
• Bucket capacity: up to 2.3 m³
• Bucket payload: 3.7–4.7 t
• Standard features: quick coupler readiness, Click & Dig automated loading
• Primary applications: infrastructure, recycling, quarrying
