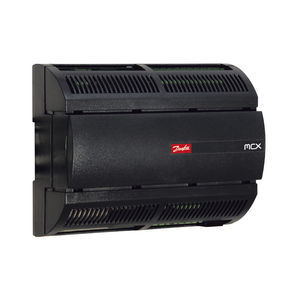

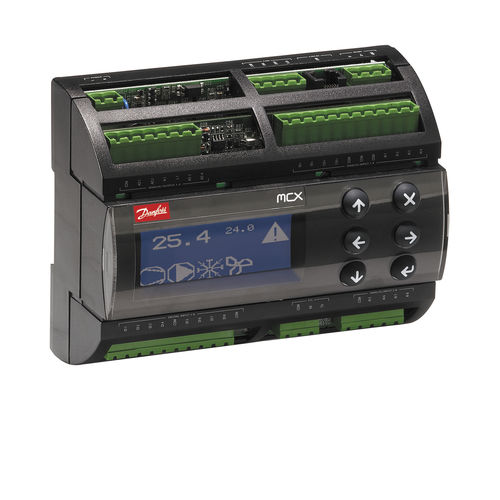

Function: Programmable Controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; MODBUS; RS485, Packing format: Multi pack, Quantity per packing format: 12
Gross weight - 0.56 kg
Net weight - 0.38 kg
EAN - 5702428414388
Analog inputs (AI) [pc] - 7 pc
Analog outputs (AO) [pc] - 3 pc
Approval - CE
GOST R
UL
Buzzer - NO
Communication type - CANBUS
MODBUS
RS485
Connector kit Code No. - 080G0268
Connector kit included - Yes
Digital inputs (DI) [pc] - 8 pc
Digital outputs (DO) [pc] - 6 pc
Display type - LCD
Enclosure rating IP - IP40
Frequency [Hz] - 50/60 Hz
Function - Programmable Controller
Further information - Backup Battery Input
Identical product - 080G0257
Mounting method - DIN rail
Packing format - Multi pack
Power consumption [W] - 27 W
Product accessories - Electron. control accessories
Product group - Programmable controllers
Product name - Program. controller, 6 relays
Quantity per packing format - 12 pc
Real time clock - Yes
Serviceable - No
Supply voltage [V] AC [Max] - 230 V
Supply voltage [V] AC [Min] - 110 V
Type - MCX061V
