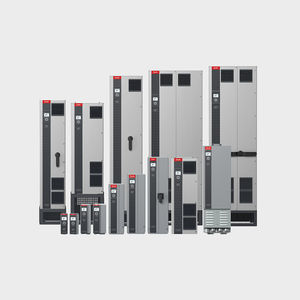

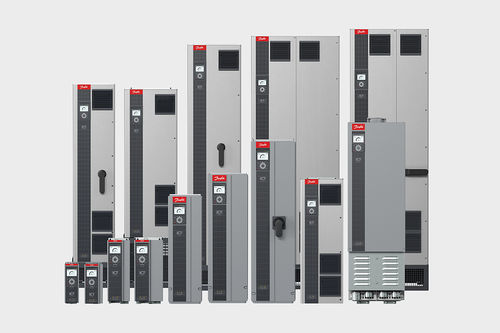

Central inverter IC7-HVACR

three-phasemodular

Overview
iC7-HVACR is a next-generation variable frequency drive (VFD) designed for energy-efficient HVAC and refrigeration systems in commercial and industrial buildings. It provides modular control, secure connectivity and advanced monitoring to support demanding installations and Industrial IoT integration.

Product summary
The iC7-HVACR family comprises standard drives and an ULH (Ultra Low Harmonic) variant for enhanced harmonic mitigation. Units are suitable for wall-mounted, cabinet-mounted or free-standing installations and offer extended HVACR intelligence with optional sensors, analytics and secure fieldbus connections.

Supply voltage and power range

• Standard drives: 3 x 380-480 V AC — 1.1 – 710 kW
• Ultra low-harmonic (ULH) drives: 3 x 380-480 V AC — 22 – 160 kW

Key features

• Compact footprint to reduce installation space and cooling load
• Hardware-based cybersecurity (crypto chip) for end-to-end encrypted data transfer and protection against unauthorized access
• HVACR-specific functionality with additional sensors, analytics and future-proof connectivity
• Built-in EMC filter for Categories C1, C2 and C3
• ULH variants delivering very low THDi (< 3–5%) to protect equipment from overheating and malfunction
• Integrated dual Ethernet or RS485 ports supporting BACnet/IP, Modbus TCP, EtherNet/IP, PROFINET RT, EtherCAT, BACnet MSTP and Modbus RTU
• Safe Torque-Off (STO) up to SIL3 / Performance Level e (PLe) as standard
• Multiple onboard sensors with calibration for improved control accuracy
• Back-channel cooling that extracts up to 90% of heat losses from the electrical room to lower HVAC demand
• Compatibility with induction (IM) and permanent magnet (PM) motors
• Integrated condition-based monitoring (CBM) to maximize uptime
• Support for virtual models to simulate drive or converter environments and de-risk upgrades

ULH (Ultra Low Harmonic) variant
The iC7-HVACR ULH variant provides advanced harmonic mitigation for sensitive power networks and installations with strict harmonic limits, improving power quality and equipment lifetime.

Installation & application notes

• Optimized for wall-mounted, cabinet-mounted or free-standing installation
• Designed for commercial building HVACR systems and other demanding environments

Digital ecosystem & tools

• Modular control platform enables flexible functionality expansion
• Compatible with MyDrive® Suite and MyDrive Insight tools for configuration, monitoring and analytics

Benefits

• Improved energy efficiency and lower operating costs
• Reduced harmonic disturbance and compliance with power quality requirements
• Enhanced cybersecurity and secure BMS integration
• Space savings and reduced cooling demand via compact design and back-channel cooling
• Lower lifecycle costs and extended equipment service life

Technical specifications

• Product family: iC7-HVACR (standard and ULH variants)
• Supply voltage: 3 x 380–480 V AC
• Power ranges: standard 1.1–710 kW; ULH 22–160 kW
• Harmonic performance: ULH THDi typically < 3–5%
• EMC: built-in filter for Categories C1, C2 and C3
• Connectivity: dual Ethernet or RS485; protocols include BACnet/IP, Modbus TCP, EtherNet/IP, PROFINET RT, EtherCAT, BACnet MSTP, Modbus RTU
• Functional safety: Safe Torque-Off (STO) up to SIL3 / PLe as standard
• Cooling: back-channel cooling for reduced electrical room heat loss
• Security: hardware-based crypto chip for encrypted data transfer
• Integrated sensors: multiple onboard sensors with calibration support
