The Dressta TD-25 Series is the first of our heavy-duty crawler dozer range, starting with a net flywheel power of 375 hp (280 kW) and an operating weight of 41.5t. The machines are built to excel in heavy mining, coal and construction projects, incorporating advanced technologies and components for optimal performance.
The TD-25 Series machines can be specified in Standard (STD), XP and Landfill Application (LA) versions, but can be further modified to meet specific customer requirements through Dressta's Special Feature Requests (SFRs) initiative.
BASIC SPECIFICATIONS
Engine280 kW
Weight41.2 t
Blade Capacity Range5.7 - 21 m3
OPTIMAL POWER TO WEIGHT RATIO FOR UNRIVALLED TRACTION & DRAWBAR PULL…

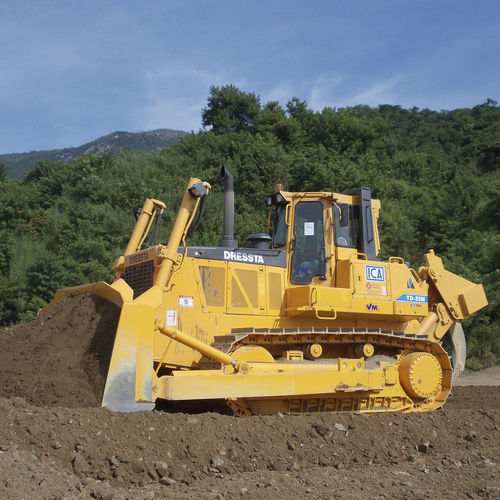

The TD-25R Extra sets the standards for others to follow and is a result of DRESSTA’s experience in designing highly efficient and productive Crawler Dozers.
Design concepts utilised in the TD-25R Extra include, optimisation of weight distribution, modular construction, and use of a one-piece main frame, two-speed Steering Drive and a 3-point track mounting system. Optimal performance is achieved when machine weight is matched to power and the TD-25R Extra provides a second-to-none balance of weight for traction and power for unrivalled drawbar pull.
KEY SPECIFICATIONS
Driveline
Engine Manufacturer / Model / TierCummins/QSX 15/T4F
Displacement15.00 l
Rated Speed2000 RPM
Engine Output - Net280 kW
Rated Speed - Torque1200 RPM
Engine Torque1993 Nm
Transmission Type - Fwd Rev SpeedsPowershift - 6/6
Carrier Rollers / Track Rollers2/6
Shoe Pitch250 mm
Track Shoe Width560 mm
Ground Contact Area36600 cm2
Number of Shoes39
