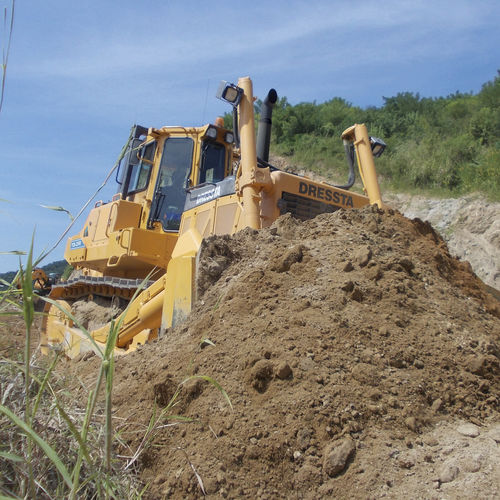

Crawler bulldozer TD-25R EXTRA LA

The Dressta TD-25 Series is the first of our heavy-duty crawler dozer range, starting with a net flywheel power of 375 hp (280 kW) and an operating weight of 41.5t. The machines are built to excel in heavy mining, coal and construction projects, incorporating advanced technologies and components for optimal performance. The TD-25 Series machines can be specified in Standard (STD), XP and Landfill Application (LA) versions, but can be further modified to meet specific customer requirements through Dressta's Special Feature Requests (SFRs) initiative. BASIC SPECIFICATIONS Engine280 kW Weight41.2 t Blade Capacity Range5.7 - 21 m3 KEY SPECIFICATIONS Driveline Engine Manufacturer / Model / TierCummins/QSX 15/T4F Displacement15.00 l Rated Speed2000 RPM Engine Output - Net280 kW Rated Speed - Torque1200 RPM Engine Torque1993 Nm Transmission Type - Fwd Rev SpeedsPowershift - 6/6 Carrier Rollers / Track Rollers2/6 Shoe Pitch250 mm Track Shoe Width560 mm Ground Contact Area36600 cm2 Number of Shoes39 Capacities Fuel Tank770 l Hydraulic Tank130 l Blade Capacity20.60 m3 Dimensions Height Top of ROPS (Max)3800 mm Ground Clearance575 mm Width - Over Tracks2700 mm Track Length - On Ground3270 mm Blade Width4050 mm Ground Clearance575 mm Performance Speed Forward - Maximum10.30 km/h Speed Reverse - Maximum12.20 km/h Ground Bearing Pressure84.70 kPa Drawbar Pull Maximum793 kN Implement Pump Flow305.50 l/min Operating Weight Operating Weight42250 kg
