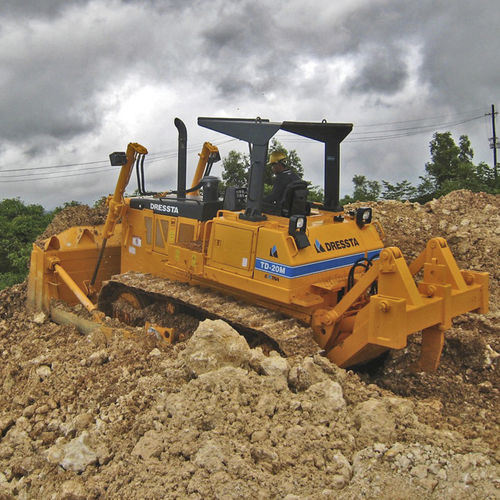

Crawler bulldozer TD-20R EXTRA LGP

The Dressta TD-20 mid-sized crawler dozer is extremely powerful and ideal for ripping and grading in medium to heavy operations. Available in several models, the TD-20 starts with 240hp and an operating weight of 24.2t. Customers can specify the TD-20 in Standard (STD), Long Track (LT), Wide Track (WT) and Low Ground Pressure (LGP) versions. The machine can be modified with Landfill Application (LA) equipment for heavy-duty waste management operations. BASIC SPECIFICATIONS Engine Range185 kW - 205 kW Weight Range23.9 t - 25.0 t Blade Capacity Range3.88 - 8.45 m3 Ground Pressure65 kPa KEY SPECIFICATIONS Driveline Engine Manufacturer / Model / TierCummins/QSL9/T4F Displacement8.90 l Rated Speed2200 RPM Engine Output - Net185 kW Rated Speed - Torque1500 RPM Engine Torque1213 Nm Transmission Type - Fwd Rev SpeedsPowershift - 6/6 Carrier Rollers / Track Rollers2/6 Shoe Pitch216 mm Track Shoe Width864 mm Ground Contact Area53000 cm2 Number of Shoes42 Capacities Fuel Tank420 l Hydraulic Tank115 l Blade Capacity6.03 m3 Dimensions Height Top of ROPS (Max)3570 mm Ground Clearance460 mm Width - Over Tracks3050 mm Track Length - On Ground3080 mm Blade Width4370 mm Ground Clearance460 mm Performance Speed Forward - Maximum10.50 km/h Speed Reverse - Maximum12.20 km/h Ground Bearing Pressure46.30 kPa Drawbar Pull Maximum610 kN Implement Pump Flow239.70 l/min Operating Weight Operating Weight25370 kg
