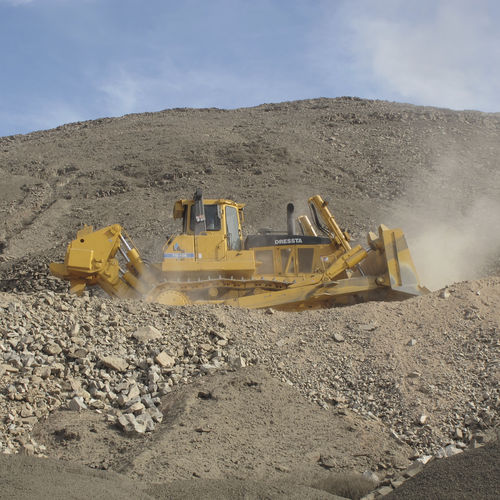

Crawler bulldozer TD-40E EXTRA

crawler bulldozer
crawler bulldozer
crawler bulldozer
crawler bulldozer
crawler bulldozer
crawler bulldozer
crawler bulldozer
Add to favorites
Compare this product


Characteristics

Locomotion
crawler
Engine power

384 kW
(522.09 hp)

Operating weight

67,700 kg
(149,253 lb)

Description

The Dressta TD-40 is our heaviest and most powerful crawler dozer, with an operating weight of 67.7t and net flywheel power of 515hp. The machines are purpose built for extreme duty construction, coal and mining projects. Featuring superior draw bar pull and immense ripping performance, the durable TD-40 Series machines are built to withstand the most challenging, abrasive tasks. OPTIMAL POWER TO WEIGHT RATIO FOR UNRIVALLED TRACTION & DRAWBAR PULL… The TD-40E Extra sets the standards for others to follow and is a result of DRESSTA’s experience in designing highly efficient and productive Crawler Dozers. Design concepts utilised in the TD-40E Extra include, optimisation of weight distribution, modular construction, and use of a one-piece main frame, two-speed Steering Drive and a 3-point track mounting system. Optimal performance is achieved when machine weight is matched to power and the TD-40E Extra provides a second-to-none balance of weight for traction and power for unrivalled drawbar pull. KEY SPECIFICATIONS Driveline Engine Manufacturer / Model / TierCummins/QSK 19/T3 Displacement19.00 l Rated Speed2000 RPM Engine Output - Net384 kW Rated Speed - Torque1500 RPM Engine Torque2379 Nm Transmission Type - Fwd Rev SpeedsPowershift - 6/6 Carrier Rollers / Track Rollers2/6 Shoe Pitch280 mm Track Shoe Width610 mm Ground Contact Area44000 cm2 Number of Shoes39 Capacities Fuel Tank1362 l Hydraulic Tank169 l Blade Capacity18.60 m3 Dimensions Height Top of ROPS (Max)4220 mm Width - Over Tracks3110 mm Track Length - On Ground3610 mm Blade Width4810 mm
