The Dressta TD-40 is our heaviest and most powerful crawler dozer, with an operating weight of 67.7t and net flywheel power of 515hp. The machines are purpose built for extreme duty construction, coal and mining projects.
Featuring superior draw bar pull and immense ripping performance, the durable TD-40 Series machines are built to withstand the most challenging, abrasive tasks.
BASIC SPECIFICATIONS
Engine Range384 kW - 394 kW
Weight67.7 t
Blade Capacity Range18.6 - 39.8 m3
OPTIMAL POWER TO WEIGHT RATIO FOR UNRIVALLED TRACTION & DRAWBAR PULL…

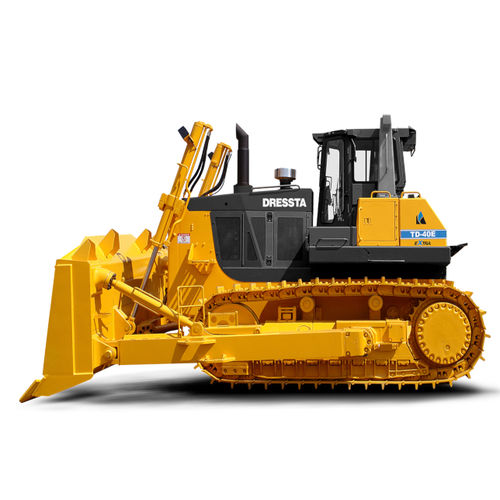

The TD-40E XP sets the standards for others to follow and is a result of DRESSTA’s experience in designing highly efficient and productive Crawler Dozers.
Design concepts utilised in the TD-40E XP include, optimisation of weight distribution, modular construction, and use of a one-piece main frame, two-speed Steering Drive and a 3-point track mounting system. Optimal performance is achieved when machine weight is matched to power and the TD-40E XP provides a second-to-none balance of weight for traction and power for unrivalled drawbar pull.
KEY SPECIFICATIONS
Driveline
Engine Manufacturer / Model / TierCummins/QSK 19/T2
Displacement19.00 l
Rated Speed2100 RPM
Engine Output - Net388 kW
Rated Speed - Torque1500 RPM
Engine Torque2237 Nm
Transmission Type - Fwd Rev SpeedsPowershift - 6/6
Carrier Rollers / Track Rollers2/6
Shoe Pitch280 mm
Track Shoe Width610 mm
Ground Contact Area44000 cm2
Number of Shoes39
Capacities
Fuel Tank1362 l
Hydraulic Tank169 l
Blade Capacity18.60 m3
Dimensions
Height Top of ROPS (Max)4220 mm
Width - Over Tracks3110 mm
Track Length - On Ground3610 mm
Blade Width4810 mm
