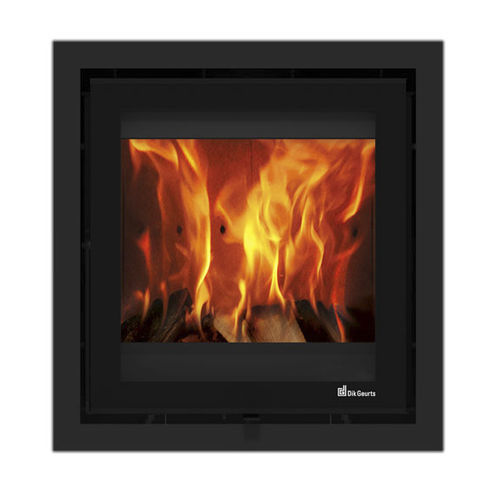

Prostyle fires have screen-printed glass that conceals the metal frames. The Prostyle 550 is the ideal size for a brick chimney. It can be used as a hole in the wall wood fire. It can also be combined with a standard or panoramic frame or even with a classic fire surround and hearth to create a traditional fireplace.
Specifications
Brand - Dik Geurts
Series - Instyle/Prostyle
Category - Wood fires
EcoDesign Ready -
Energy efficiency class - A+
Model - Built-in
Fire view - Front
Shape - Vertical
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Screen-printed glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Max. log length (cm) - 36
Efficiency (%) - 81.0
CO emission (%-13% O2) - 0.09
Particulate Matter (mg/Nm3-13% O2) - 27
OGC/CxHy (mg/Nm3-13% O2) - 85
NOx emission (mg/Nm3-13% O2) - 129
Fire view width (mm) - 384
Fire view height (mm) - 408
Flue - Top
External air connection - Rear, Base
Convection connection -
230V necessary -
Approvals - EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign, Hetas
