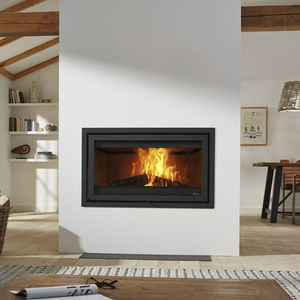

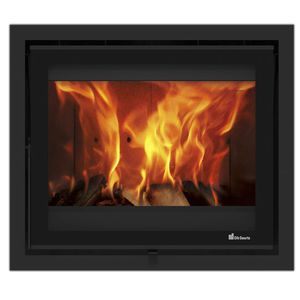

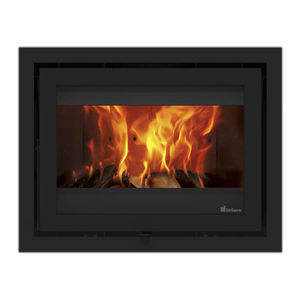

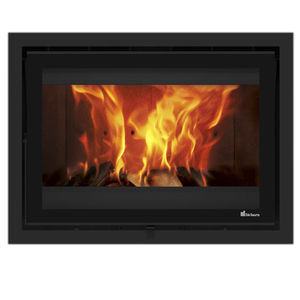

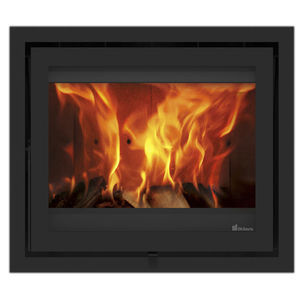

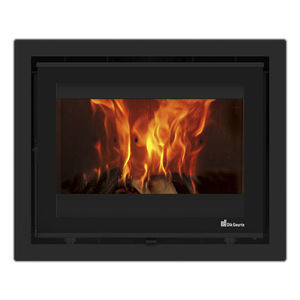

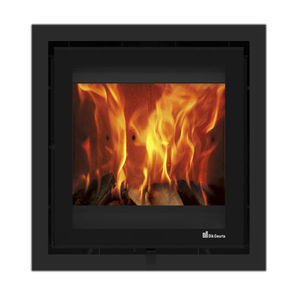

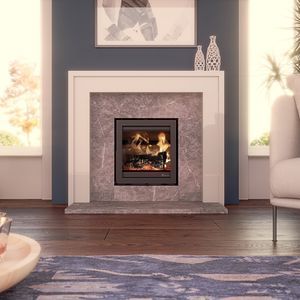

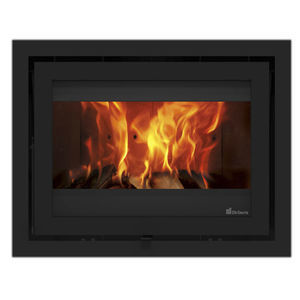

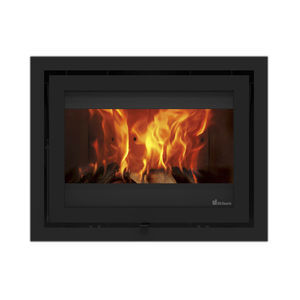

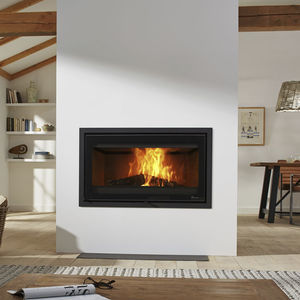

The Instyle 700 can be installed into a chimney or false chimneybreast. This stylish insert wood fire is available with a selection of frames to enhance its visual appeal, including: Classic Line, Modern Line, Panoramic or Slim line. It has a heat output range from 8 – 12 kW and an energy efficiency rating of 82%.
The 'Build-in frame' is available as a 3mm frame as well as an 8mm frame.
Specifications
Brand - Dik Geurts
Series - Instyle/Prostyle
Category - Wood fires
EcoDesign Ready -
Energy efficiency class - A+
Fire view - Front
Shape - Horizontal
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Standard glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Max. log length (cm) - 45
Efficiency (%) - 81.6
CO emission (%-13% O2) - 0.08
Particulate Matter (mg/Nm3-13% O2) - 24
OGC/CxHy (mg/Nm3-13% O2) - 120
NOx emission (mg/Nm3-13% O2) - 105
Fire view width (mm) - 560
Fire view height (mm) - 457
Flue - Top
External air connection - Rear, Base
Convection connection -
230V necessary -
Approvals - EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign, Hetas
