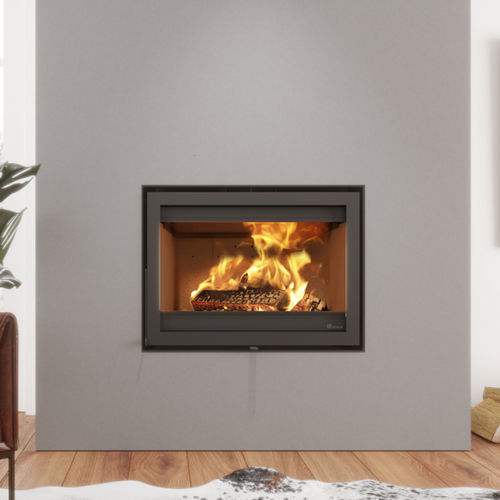

The Instyle 800V Next, with a width of 80 cms, can be installed into a standard UK brick chimney. It can also be built into a pre-fabricated chimney as a widescreen hole-in-the-wall wood burning fire. A special feature of the Instyle 800V Next insert wood stove is the optional fan-assisted ventilation, which electrically enhances the heating power of the fire.
Specifications
Brand - Dik Geurts
Series - Instyle V Next
Category - Wood fires
EcoDesign Ready -
Energy efficiency class - A
Fire view - Front
Shape - Horizontal
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Standard glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Efficiency (%) - 76.6
CO emission (%-13% O2) - 0.06
NOx emission (mg/Nm3-13% O2) - 122
Fire view width (mm) - 640
Fire view height (mm) - 437
Flue - Top
External air connection - Rear, Base
Convection connection -
230V necessary -
Approvals - EN13229, Flamme Verte, BlmSchV, EcoDesign
