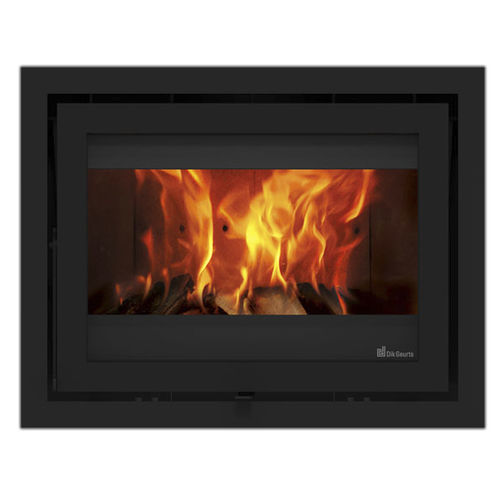

Wood-burning fireplace insert Dik Geurts - Prostyle 650

steelcontemporary

Prostyle fires have screen-printed glass that conceals the metal frames. The Prostyle 650 is designed for a standard chimney. It can be used as a simple wood fire insert. It can also be combined with a standard or panoramic frame or even with a classic fire surround and hearth to create a more traditional log fireplace. The 'Build-in frame' is available as a 3mm frame as well as an 8mm frame. Specifications Brand - Dik Geurts Series - Instyle/Prostyle Category - Wood fires EcoDesign Ready - Energy efficiency class - A Model - Built-in Fire view - Front Shape - Horizontal Combustion system - Combustion air from living area Suitable for passive houses - Glass window - Screen-printed glass Door type - Hinged door Control - Manual control S-Thermatik NEO - Colours - Dark anthracite Interior - Vermiculite natural Max. log length (cm) - 40 Efficiency (%) - 80.5 CO emission (%-13% O2) - 0.08 Particulate Matter (mg/Nm3-13% O2) - 24 OGC/CxHy (mg/Nm3-13% O2) - 58 NOx emission (mg/Nm3-13% O2) - 99 Fire view width (mm) - 507 Fire view height (mm) - 343 Flue - Top External air connection - Rear, Base Convection connection - 230V necessary - Approvals - EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign, Hetas
