Wood-burning fireplace insert DIK GEURTS - INSTYLE 550

steelcontemporary

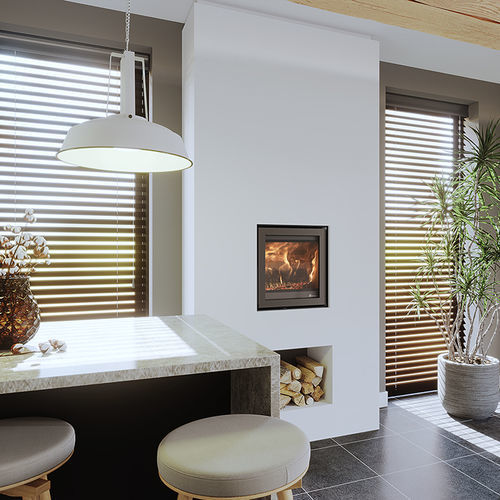

The Instyle 550 is designed for insertion into a Class 1 UK brick chimney. It can be combined with a classic fire surround and hearth to create a traditional fireplace. It has a heat output range from 3 – 7 kW, an efficiency rating of 87% and it has DEFRA approval for use in UK urban smokeless zones. Specifications Brand - Dik Geurts Series - Instyle/Prostyle Category - Wood fires EcoDesign Ready - Energy efficiency class - A+ Model - Built-in Fire view - Front Shape - Vertical Fuel - Wood Combustion system - Combustion air from living area Suitable for passive houses - Glass window - Standard glass Door type - Hinged door Control - Manual control S-Thermatik NEO - Colours - Dark anthracite Interior - Vermiculite natural Max. log length (cm) - 36 Efficiency (%) - 81.0 CO emission (%-13% O2) - 0.09 Particulate Matter (mg/Nm3-13% O2) - 27 OGC/CxHy (mg/Nm3-13% O2) - 85 NOx emission (mg/Nm3-13% O2) - 129 Fire view width (mm) - 387 Fire view height (mm) - 417 Flue - Top External air connection - Rear, Base Convection connection - 230V necessary - Approvals - EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign, Hetas
