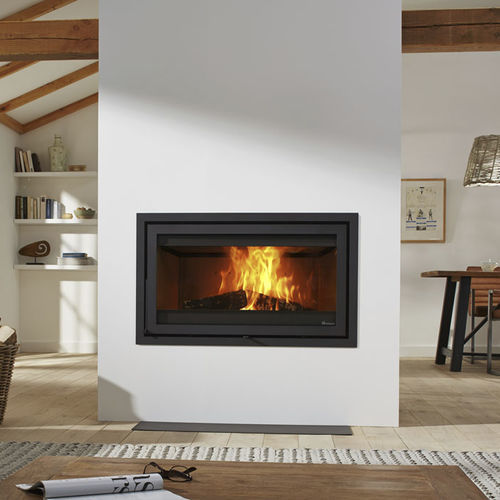

The Instyle 1000, 1 metre wide wood stove can be inserted into a standard UK brick chimney. It can also be built into a pre-fabricated chimneybreast to create a spectacular letterbox-style wood fire. It has a heat output range from 9 - 13 kW and an impressive energy efficiency rating of 78%.
Specifications
Brand - Dik Geurts
Series - Instyle/Prostyle
Category - Wood fires
EcoDesign Ready -
Energy efficiency class - A
Model - Built-in
Fire view - Front
Shape - Horizontal
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Standard glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Max. log length (cm) - 75
Efficiency (%) - 77.7
CO emission (%-13% O2) - 0.08
Particulate Matter (mg/Nm3-13% O2) - 27
OGC/CxHy (mg/Nm3-13% O2) - 54
NOx emission (mg/Nm3-13% O2) - 164
Fire view width (mm) - 860
Fire view height (mm) - 437
Flue - Top
External air connection - Rear, Base
Convection connection -
230V necessary -
Approvals - EN13229, Flamme Verte, BlmSchV, EcoDesign
