Aluminum lamp post ODELIA
urbantraditionalPMMA

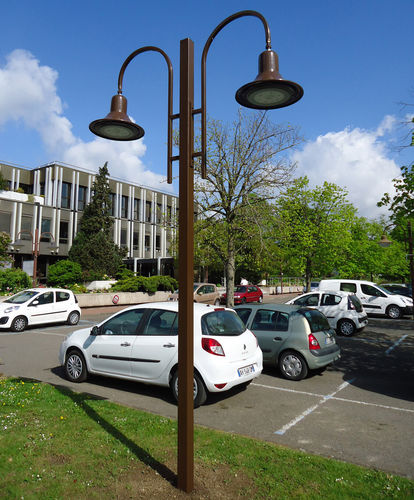

Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA - image - 2
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA - image - 3
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA - image - 4
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA - image - 5
Aluminum lamp post - ODELIA - ECLATEC International - urban / traditional / PMMA - image - 6
Add to favorites
Compare this product

Characteristics

Type
urban
Style
traditional
Material
aluminum, cast aluminum, glass, PMMA
Light source
LED
Number of lights
single, double
Shape
round
Support type
without lighting pole
Protection class
IP66
Color
gray, brown, blue, customizable color
Other characteristics
smart, IK08, IK10, with presence detector
Height

350 mm, 450 mm
(13.78 in, 17.72 in)

Length

550 mm, 670 mm
(22 in, 26 in)

Width

550 mm, 670 mm
(22 in, 26 in)

Color temperature

2,200 K, 2,400 K, 2,700 K, 3,000 K, 4,000 K

Luminous flux

10,096 lm

Power

74 W, 145 W

Description

HOUSING: Stamped aluminium dome on a cast aluminium frame BOWL: ORALED: in PMMA / SEOLED: in glass FINISH: Polyester powder coating, any colour available SOURCES BLS: ORALED / SEOLED COLOUR TEMPERATURE: ORALED: 2700 K, 3000 K, 4000 K SEOLED: Amber*, 2200 K, 2400 K, 2700 K, 3000 K or 4000 K OPTICAL: ORALENS/QUADRALENS FLUX & POWER**: ODELIA 550: Up to 10 096lm; 74W ODELIA 670: Up to 19 464lm; 145W ELECTRICAL CLASS: Class I or II MOUNTING: Suspended *Approx. 1800K **At 3000K, in accordance with performance standards IEC 62717 and IEC 62722 (+/-5%tolerance)
