Cast aluminum lamp post INDICE-CONIC
urbancontemporarypolycarbonate

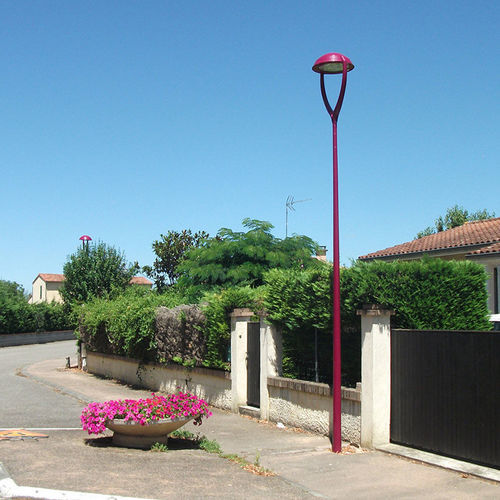

Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate - image - 2
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate - image - 3
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate - image - 4
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate - image - 5
Cast aluminum lamp post - INDICE-CONIC - ECLATEC International - urban / contemporary / polycarbonate - image - 6
Add to favorites
Compare this product

Characteristics

Type
urban
Style
contemporary
Material
cast aluminum, glass, polycarbonate
Light source
LED
Number of lights
single
Shape
round
Support type
without lighting pole
Protection class
IP66
Color
gray
Other characteristics
smart, IK08, with presence detector
Height

215 mm, 230 mm, 1,050 mm
(8.46 in, 9.06 in, 41.34 in)

Length

600 mm, 670 mm, 690 mm
(24 in, 26 in, 27 in)

Width

600 mm
(24 in)

Color temperature

2,400 K, 2,700 K, 3,000 K, 4,000 K

Power

145 W

Description

HOUSING: Injection cast aluminium body. Stamped Aluminium dome. BOWL: SVQ: Version without bowl PMC: Clear medium polycarbonate (ORALED) POC: Clear bullet polycarbonate (ORALED) VPS: Flat screen printed glass (SEOLED) FINISH: Polyester powder coating. SOURCES: ORALED 2 / SEOLED 2 COLOUR TEMPERATURE: ORALED 2: 3000 K or 4000 K SEOLED 2: 2400 K, 2700 K, 3000 K or 4000 K OPTICAL: ORALENS / LED strips BLS FLUX & POWER**: Up to 19 464lm; 145W ELECTRICAL CLASS: Class I or II MOUNTING: Suspended, lateral, U-bracket **At 3000K, in accordance with performance standards IEC 62717 and IEC 62722 (+/-5% tolerance)
