Urban lamp post CORTO
contemporarypolycarbonatealuminum

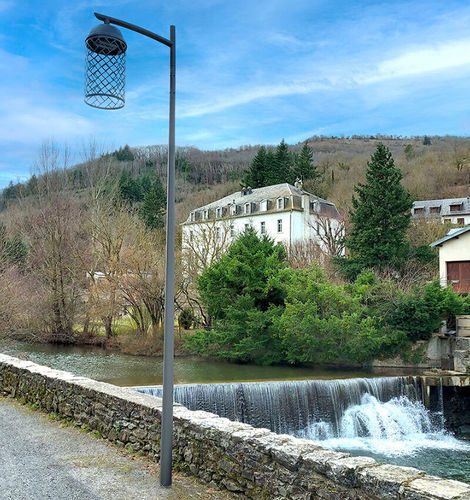

Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum - image - 2
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum - image - 3
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum - image - 4
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum - image - 5
Urban lamp post - CORTO - ECLATEC International - contemporary / polycarbonate / aluminum - image - 6
Add to favorites
Compare this product

Characteristics

Type
urban
Style
contemporary
Material
aluminum, polycarbonate
Light source
LED
Number of lights
single
Shape
lantern, round
Support type
without lighting pole
Protection class
IP66
Color
gray, customizable color
Other characteristics
smart, IK10, with presence detector
Height

744 mm
(29.29 in)

Length

403 mm
(16 in)

Width

403 mm
(16 in)

Color temperature

2,200 K, 2,400 K, 2,700 K, 3,000 K, 4,000 K

Luminous flux

10,096 lm

Power

75 W

Description

HOUSING: Spun aluminium DECORATIVE DESIGN: Cut aluminium BOWL: Polycarbonate FINISH: Polyester powder coating, any colour available SOURCES: ZEDLED 1 COLOUR TEMPERATURE: Amber*, 2200K, 2400K, 2700K, 3000K or 4000K OPTICAL: QUADRALENS BACKLIGHT SHIELD: Medium or high as an option FLUX & POWER**: Up to 10 096lm; 75W ELECTRICAL CLASS: Class I or II WIRING: Factory pre-wired MOUNTING: Suspended *Approx. 1800K **At 3000K, in accordance with performance standards IEC 62717 and IEC 62722 (+/-5% tolerance)

Catalogs

CORTO
CORTO
4 Pages
