Cast aluminum wall light STANZA
traditionaloutdoorpolycarbonate

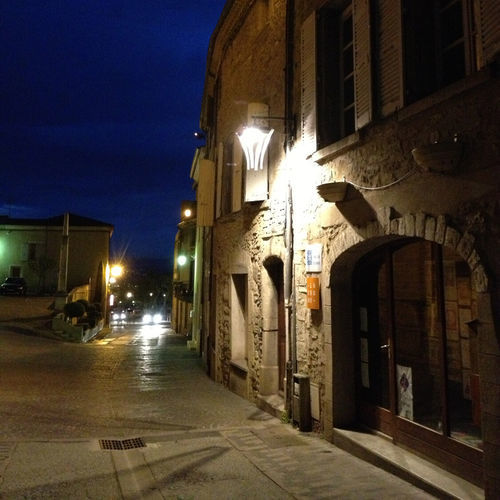

Cast aluminum wall light - STANZA - ECLATEC International - traditional / outdoor / polycarbonate
Cast aluminum wall light - STANZA - ECLATEC International - traditional / outdoor / polycarbonate
Add to favorites
Compare this product

Characteristics

Style
traditional
Interior/exterior use
outdoor
Material
cast aluminum, polycarbonate
Diffuser shape
square, lantern
Type of support
fixed
Applications
for public space, road
Number of lights
single
Protection class
IP66
Color
gray, customizable color
Dimmable
dimmable
Other characteristics
with motion sensor, IK10
Height

745 mm, 760 mm
(29 in, 30 in)

Length

540 mm
(21 in)

Power

102 W

Luminous flux

11,735 lm

Color temperature

2,400 K, 2,700 K, 3,000 K, 4,000 K

Description

HOUSING: Die-cast aluminium body. Arms in polycarbonate (UV treatment) BOWL: Thermally toughened flat glass FINISH: Polyester powder coating, any colour available SOURCES: SOMLED 1 / BLS Strips COLOUR TEMPERATURE: SOMLED 1: 3000K or 4000K
 BLS: Amber*, 2200 K, 2400 K, 2700 K, 3000K, 4000 K OPTICAL: ORALENS / QUADRALENS FLUX & POWER**: Up to 11 735lm; 102W

 ELECTRICAL CLASS: Class I or II WIRING: Pre-wired at the factory (6 m) (post top version only) MOUNTING: Post top, suspended

Catalogs

STANZA
STANZA
2 Pages
LINK
LINK
2 Pages
