Contemporary wall light ORNA
outdoorcast aluminumpolycarbonate

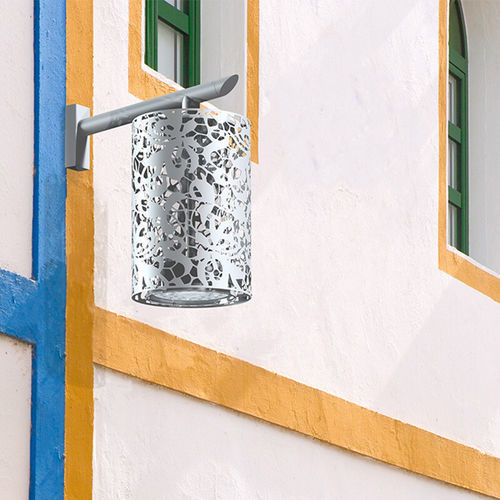

Contemporary wall light - ORNA - ECLATEC International - outdoor / cast aluminum / polycarbonate
Contemporary wall light - ORNA - ECLATEC International - outdoor / cast aluminum / polycarbonate
Contemporary wall light - ORNA - ECLATEC International - outdoor / cast aluminum / polycarbonate - image - 2
Contemporary wall light - ORNA - ECLATEC International - outdoor / cast aluminum / polycarbonate - image - 3
Contemporary wall light - ORNA - ECLATEC International - outdoor / cast aluminum / polycarbonate - image - 4
Add to favorites
Compare this product
Go to the ECLATEC International website for more information

Characteristics

Style
contemporary
Interior/exterior use
outdoor
Material
cast aluminum, polycarbonate, PMMA
Diffuser shape
cylindrical, lantern
Type of support
fixed
Applications
for public space
Light source
LED
Number of lights
single
Protection class
IP66
Color
gray, customizable color
Dimmable
dimmable
Other characteristics
with motion sensor, IK08
Height

600 mm
(24 in)

Length

400 mm
(16 in)

Power

75 W

Luminous flux

10,096 lm

Color temperature

2,200 K, 2,400 K, 2,700 K, 3,000 K, 4,000 K

Description

HOUSING: Die-cast aluminium LED module BOWL: Vertical: clear PMMA Horizontal: flat in clear polycarbonate FINISH: Polyester powder coating, any colour available SOURCES: ORALED / BLS strips/ backlighting BACK LIGHTING: Bowl back-lighting: RGBW Optional diffusing film COLOUR TEMPERATURE: ORALED: 2700K, 3000K or 4000K (others on request) BLS: Amber*, 2200K, 2400K, 2700K, 3000K or 4000K OPTICAL: ORALENS or QUADRALENS BACKLIGHT SHIELD: Medium or high as an option FLUX & POWER**: Up to 10 096lm; 75W ELECTRICAL CLASS: Class I or II WIRING: Factory pre-wired MOUNTING: Suspended *Approx. 1800K **At 3000K, in accordance with performance standards IEC 62717 and IEC 62722 (+/-5% tolerance)
