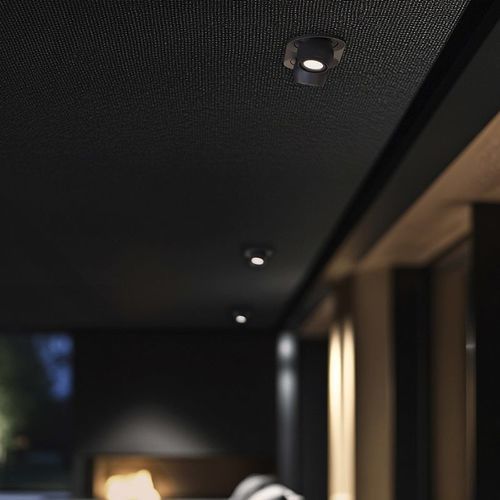

Recessed downlight AXIS

recessed ceilingLEDround

Axis are miniaturised recessed spotlights designed for precise accent lighting while remaining nearly invisible in the ceiling. They suit galleries, retail, hospitality and other projects requiring targeted, high-fidelity illumination.

Key features

• >100 lm/W luminous efficacy
• Casambi Bluetooth for wireless dimming (DALI available as accessory)
• 3 interchangeable light distributions selectable on site without tools

Sizes

• XXS — Diameter: 17 mm; Luminaire flux: 78–115 lm (depending on variant and optics)

Design and light control

• 3 interchangeable optics: Spot (17°), Flood (32°), Wide Flood (45°)
• Rotating and tilting light head: up to 360° rotation and up to 140° tilt for precise aiming
• Mounting frames available for 1, 2 or 4 light heads; suitable for single, double and quad arrangements

Performance and optical quality

• Engineered lens technology to deliver focused light to the target and minimise stray light (strong accents — e.g. up to ~200 lx at 2 m depending on configuration)
• High colour fidelity: CRI up to 97; LED colour consistency typically ≈1.5 SDCM
• Long lifetime performance: L90/B10 after 50,000 operating hours (population-based metric)

Accessories & installation

• Clip-on filters and accessories to shape or soften the beam (softening lens, sculpture lens, snoots, honeycomb louvre)
• Particularly compact control gear options for tight ceiling installations (example: compact gear 142 × 50 × 35 mm for 1–2 or 3–7 light heads)

Technical specifications

• Brand: ERCO
• Family: Axis
• Size: XXS — Ø 17 mm
• Connected load: ~1 W (typical for XXS)
• Luminaire flux: 78 lm – 115 lm (depending on variant)
• Light distributions: 3 (Spot 17°, Flood 32°, Wide Flood 45°)
• Rotation / Tilt: 360° / up to 140°
• Mounting frames: options for 1, 2 or 4 heads (accessories)
• Dimming / control: Casambi Bluetooth (integrated); DALI available as accessory
• Optical performance: >100 lm/W efficacy; CRI up to 97; LED colour consistency ≈1.5 SDCM; L90/B10 @ 50,000 h
• Compact control gear available for constrained installation spaces (example dims: 142 × 50 × 35 mm)
