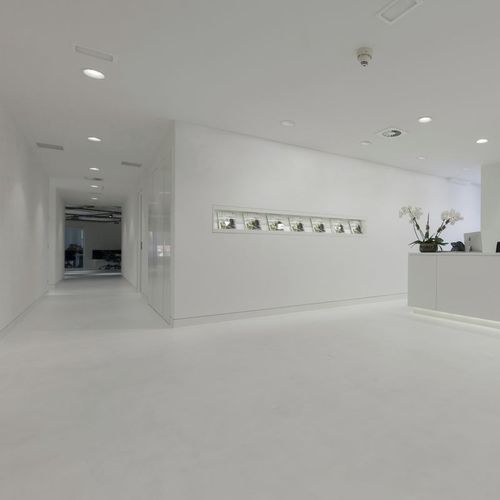

Recessed downlight SKIM PANLENS

surface mountedLEDround

Skim Panlens is a compact recessed downlight family for efficient general ambient lighting. The design lets the ceiling aperture recede behind the lighting effect: "Light instead of luminaires". The series emphasises sustainability with a lens produced from 100% recycled polymer to reduce material-related emissions.

Special features

• >120 lm/W luminous efficacy
• Casambi Bluetooth (wireless control)
• UGR < 19 for high visual comfort

Sizes

• Size 5 — Diameter: 182 mm; luminaire flux range: 1,601 lm – 2,922 lm; connected load (family): 12.1 W – 20.3 W

Downloads

• Product images (ZIP)
• Product brochure (PDF)

Highlights

• Effective general lighting with planning values < 3 W/m² in representative configurations
• Attractive price-performance ratio for budget-conscious refurbishments and large-area basic lighting
• Available also as surface-mounted variant when recessed installation is not possible
• Circular product design: lens manufactured from in-house processed polymer recyclate (100% PMMA recyclate)

Technical specifications

• Construction size: 5 (aperture Ø 182 mm)
• Connected load (electrical input, family range): 12.1 W – 20.3 W
• Light source rating (example values for downlights): 9.5 W – 15.7 W (corresponding luminous output from light source 1,711 lm – 3,142 lm)
• Luminous flux of the luminaire (family range): 1,601 lm – 2,922 lm
• Light distributions available: 2 (Wide flood; Extra wide flood)
• Luminaire arrangement recommendation: center spacing d ≤ 1.5 × mounting height h; wall offset ≈ d / 2
• Lens material: lens made from 100% recycled polymer (PMMA recyclate) produced via in-house and local circular processing
• Installation types: recessed downlight (primary) and also available as surface-mounted downlight variant
• Typical application: efficient, visually comfortable general ambient lighting for architecture and modernization projects
