Recessed downlight COMPAR

wallLEDlinear

Product description

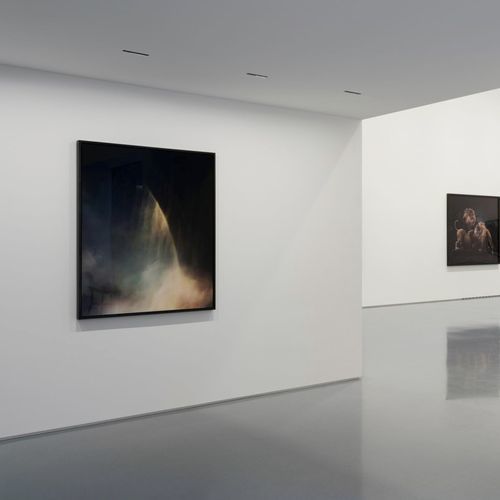

The Compar linear recessed downlights have a concise linear housing and are available from 52 mm width. They integrate into ceiling architecture to create linear accents while delivering efficient general and office lighting with high visual comfort. Compar offers an alternative to conventional linear luminaires for restaurants, administrative, cultural and office buildings.

Special features of Compar linear

• Louvres for efficient visual comfort: Limits direct view into the luminaire for improved visual comfort; anti‑glare louvres available in black or silver to match ceiling materials and colours.
• Suitable for office workstations: Designed for good glare control and high visual comfort; UGR values serve as reference and must be assessed in relation to luminaire arrangement.
• Covered or flush mounting detail: Supplied with a covered (overlapping) mounting detail; flush mounting frames are available as accessories to support site logistics.
• Shallow recess depth: Versions for compact installation situations ensure high light quality even with limited recess depth.

Individualisation / Variants (selected)

• Anti‑dazzle louvre finishes: matt gold, matt silver or matt champagne
• Connection: 3‑ or 5‑pole plug with connection cable (Wago or Wieland)
• Mounting frame: extensive colour options (ERCO individual) on request

Product features in detail

• ERCO lens system: Optical polymer. Light distributions: spot, flood, wide flood, extra wide flood, oval wide flood, oval flood. Alternative: polymer reflector (lens wallwasher), silver‑vapourised, mirror finish; Softec lens option.
• ERCO LED‑module: High‑power LEDs. Colour temperatures: 2700K, 3000K, 3500K, 4000K.
• Louvre: Polymer (black lacquered) or aluminium vapourised (silver, mirror finish). Cut‑off angles: downlight ≈30°; wallwasher ≈70°.
• Mounting frame: Covered mounting detail supplied; supports ceiling thicknesses up to 40 mm. Flush mounting frame available separately (for 12.5–25 mm ceilings).
• Housing: Aluminium profile designed as heat sink.
• Control gear: Options include switchable, phase dimmable, DALI dimmable or Casambi Bluetooth; phase‑dimmable versions compatible with trailing‑edge dimmers.

Light effect & planning data (summary)

• Downlights: source power range 6 W – 74.9 W; luminous flux approx. 582 lm – 8,854 lm. Wide rotationally symmetrical beams for general lighting.
• Oval distributions (oval / oval wide flood / oval flood): same power range with application‑specific distributions (oval wide flood for office lighting, oval flood for linear emphasis).
• Lens wallwashers: source power range 6 W – 24.3 W; luminous flux approx. 582 lm – 3,144 lm. Asymmetrical distribution for uniform wallwashing. Example rules: luminaire spacing d ≤ 1.5 × installation height h for general lighting; wallwasher offset a ≈ 1/3 × wall height h and d ≤ 1.3 × a for longitudinal uniformity.

Technical specifications

• Product family: Compar linear (recessed linear downlight)
• Available widths: from 52 mm
• Light distributions: spot, flood, wide flood, extra wide flood, oval wide flood, oval flood, wallwash
• LED colour temperatures: 2700K, 3000K, 3500K, 4000K
• Light source power (examples): 6 W – 74.9 W (downlights); 6 W – 24.3 W (lens wallwashers)
• Luminous flux (examples): ≈582 lm – 8,854 lm (downlights); ≈582 lm – 3,144 lm (wallwashers)
• Glare control: anti‑glare louvres; designed for high visual comfort (UGR considerations)
• Cut‑off angles: downlight ≈30°; wallwasher ≈70°
• Mounting: covered mounting detail supplied; flush mounting frame as accessory (12.5–25 mm); supports ceiling thickness up to 40 mm
• Housing material: aluminium profile acting as heat sink
• Optics: polymer lens system or polymer reflector (silver vapourised, mirror finish); Softec lens option
• Control options: switchable, phase dimmable, DALI, Casambi Bluetooth
• Customisation: anti‑dazzle louvre finishes (matt gold / matt silver / matt champagne), 3/5‑pole connection plugs, extensive mounting frame colours via ERCO individual
• Brand: ERCO
