Recessed downlight GIMBAL

LEDroundindoor

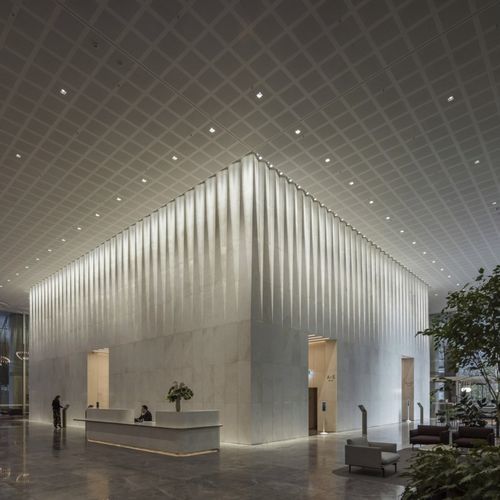

The Gimbal recessed spotlight is a compact, high-precision swivel luminaire with a cardanic suspension for precise accent lighting and very shallow recess depths. It is designed for differentiated lighting design in retail, museums and public buildings where exact beam alignment and high-contrast presentation of objects are required.

Special features

• Oval flood freely rotatable: ERCO Spherolit oval flood lens can be rotated 360° to align lighting to objects.
• Cardanic suspension: permits very precise adjustment of the light beam, especially effective with high ceilings.
• Covered or flush mounting detail: recessed luminaires have overlapping installation details; flush mounting rings available as accessories.
• Shallow recess depth: compact design developed for tight installation situations while maintaining high quality of light.

Product description
The Gimbal principle transfers traditional gimbal suspension to modern LED lighting, offering a highly precise swivel mechanism in a compact design. Multiple sizes and wattages with a broad range of light distributions make Gimbal suitable as a system for accent lighting and object emphasis. Its visible technoid appearance in the ceiling fits retail, museum and public interior projects.

Construction / detailed features

• ERCO Spherolit lens
  • Available light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, or wallwash.
  • Oval flood: 360° rotation.
• ERCO LED-module
  • High‑power LEDs available in warm white (2700K, 3000K) and neutral white (3500K, 4000K).
  • Collimating lens made of optical polymer.
• Mounting ring
  • Covered mounting detail standard.
  • Fixing for ceiling thicknesses: 1–25 mm (size 4) or 1–30 mm (sizes 5–7).
  • Polymer, white. For flush mounting: separate mounting ring to be ordered, fixing for ceiling thicknesses of 12.5–25 mm.
• Luminaire
  • Finish: black.
  • Material: cast aluminium, powder-coated.
  • Gimbal suspension parts: polymer.
  • Tilt range: 0°–40°.
• Control gear
  • Options: switchable, phase dimmable, DALI dimmable, Casambi Bluetooth.
  • Phase dimmable versions: compatible with external trailing-edge dimmers.

Individualisation options (examples)

• Connection: 3- or 5-pole plug with connection cable (Wago or Wieland).
• Housing: up to 10,000 further colours available on request via ERCO individual service.

Technical data / specifications

• Light source power range (product family): approx. 2 W – 37.4 W.
• Luminous flux range (product family): approx. 194 lm – 4,427 lm.
• Recommended application: accent lighting, object emphasis, retail, museums, public buildings.
• Available light distributions: narrow spot, spot, flood, wide flood, extra wide flood, oval flood (rotatable), wallwash.
• Correlated colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K.
• Optics: ERCO Spherolit lenses; collimating optical polymer lenses.
• Mounting: covered mounting detail with optional flush mounting rings; specified ceiling thickness fixings per size as above.
• Material / finish: cast aluminium, powder-coated (standard black); gimbal components polymer.
• Tilt range: 0°–40°.
• Dimming / control: switchable, phase dimmable (trailing edge compatible), DALI, Casambi Bluetooth.
