Recessed downlight JILLY QUADRATISCH

recessed ceilingLEDsquare

Product description
Jilly recessed luminaires provide an efficient solution for norm‑compliant office workplace lighting. The concise design with a prominent anti‑glare louvre distinguishes Jilly from conventional office luminaires. The lighting system combines a highly efficient lens with an anti‑glare louvre to deliver high visual comfort and luminous efficacy.

Key features of Jilly square

• Suitable for office workstations: Designed for good glare control and high visual comfort; UGR values serve as orientation but must be applied with regard to the specific luminaire arrangement.
• Anti‑glare louvres: Limit the view into the luminaire and provide visual comfort with an emission angle of approx. 90°. Available in black or silver to match ceiling materials and colours.
• Shallow recess depth: Developed for compact mounting situations where installation depth is limited.

Applications

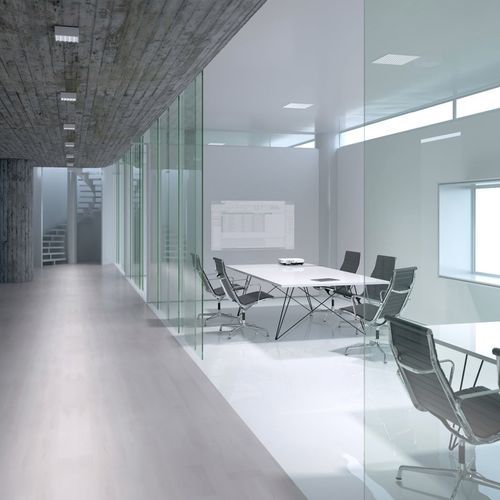

Jilly square is used for general lighting in office and communal interiors. Product imagery typically illustrates office and educational interiors.

Variants & customization

• Anti‑glare louvre finishes: gold matt, silver matt, champagne matt, copper matt and other colours.
• Housing: standard white; up to 10,000 further colours available on request (ERCO individual).

Product features in detail

• ERCO lens system: Optical polymer; light distributions: Extra wide flood, Oval wide flood.
• ERCO LED module: Mid‑power LEDs; colour temperatures: 2700K, 3000K, 3500K, 4000K.
• Louvre: Polymer, black lacquered or aluminium vapour‑coated (silver) with optional mirror finish; anti‑glare design.
• Housing: Polymer, white standard (custom colours on request).
• Mounting frame (size 5): Covered mounting detail; fixing for ceiling thicknesses 1–30 mm; separate frame for flush mounting (12.5–25 mm).
• Control gear: Switchable, phase dimmable (trailing edge compatible), DALI dimmable or Casambi Bluetooth.

Lighting technology & planning notes
Downlights provide rotationally symmetrical (extra wide flood) or oval wide flood distributions for general ambient lighting. Typical example: 8.2 W module with luminous flux around 1,473 lm–1,745 lm depending on configuration. For uniform illumination of office workstations, luminaire spacing d may be up to 1.5 × h (height above working plane); wall offset a ≈ d/2.

Technical specifications

• Product family / commercial name: Jilly square
• Brand: ERCO
• Lens system: optical polymer
• Light distributions: Extra wide flood, Oval wide flood
• Light source / example power: 8.2 W (typical)
• Luminous flux (example range): approx. 1,473 lm – 1,745 lm
• LED colour temperatures: 2700K, 3000K, 3500K, 4000K
• Louvre: anti‑glare design; polymer black lacquered or aluminium vapour‑coated (silver); emission angle ≈90°
• Housing material / colour: Polymer, white (many colours available on request)
• Mounting frame: Size 5; fixing for ceiling thicknesses 1–30 mm; separate frame for flush mounting (12.5–25 mm)
• Control gear / dimming: Switchable, Phase dimmable (trailing edge compatible), DALI dimmable, Casambi Bluetooth
• Typical applications: Office workplaces, community and public interiors
