Rectangular shower base AQUA BRILLIANT

above floortileablestainless steel

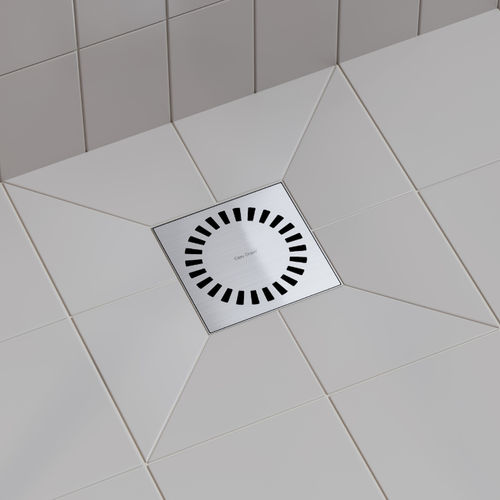

Easy Drain Shower Board Aqua Brilliant is perfectly applicable for any type of construction, whether new installation or renovation projects. Each side of this board can be shortened up to 75 cm and is coated with a special plastic mortar mix, that can be tiled immediately to ensure a 100% watertight installation. Easy Drain Shower Board Aqua Brilliant is supplied as a complete set including; Aqua Brilliant shower drain, trap body with variable connection (vertical or horizontal application), sloped shower board and sealing set. DRAINAGE CAPACITY according to EN 1253 GRATE Height adjustable grate SIPHON Easy to clean CUSTOM LENGTH Can be shortened on site SLOPE Easy slope creation without mortar or cement SHOWER DRAIN MODEL Square shower drain MIN. DIMENSIONS BOARD (MM) 750x750 mm SERIE Shower boards APPLICATION New construction, Renovation CERTIFICATION DIN 18534, EN1253 SUBSTRATE Concrete / Sand Cement, Lewis sheets, Wooden floors FLOOR FINISH Cast / screed, Glass Mosaic, Natural stone, Thin tiles, Tiles / Mosaic MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN) 39 INSTALLATION DEPTH (MM) 87 CONNECTION (⌀) 50 (Global) / 56 (UK) DIMENSIONS (MM) 1200 x 1100 mm OUTLET TYPE Rotatable outlet WATER SEAL (MM) 50 HEIGHT ADJUSTABLE FEET INCLUDED No INSTALLATION OPTION FloorOUTLETHorizontal / Vertical LOCATION IN SHOWER Free in the floor MAXDRAINAGECAPSHOWERDRAIN 39 PRE-ASSEMBLED SEALING MEMBRANE (WPS) No SIPHON CHARACTERISTICS Cleanable, Height adjustable, Pivotable & adjustable GRATE Brushed stainless steel GRATE PATTERN Standard ADJUSTABLE GRATE Yes FRAME MATERIAL Stainless steel (304) WHEELCHAIR ACCESSIBLE Yes EXTENSION SET AVAILABLE No
